> >>FSH 35000 SERIES ELECTRIC MAGNETIC DOOR HOLDER 300MM EXTENTION WITH 90° WHITE 40KG HOLDING FORCE FAIL SAFE
FSH 35000 SERIES ELECTRIC MAGNETIC DOOR HOLDER 300MM EXTENTION WITH 90° WHITE 40KG HOLDING FORCE FAIL SAFE View larger

FSH

FSH 35000 SERIES ELECTRIC MAGNETIC DOOR HOLDER 300MM EXTENTION WITH 90° WHITE 40KG HOLDING FORCE FAIL SAFE

FSH35770/300/90

35770/300/90

New product

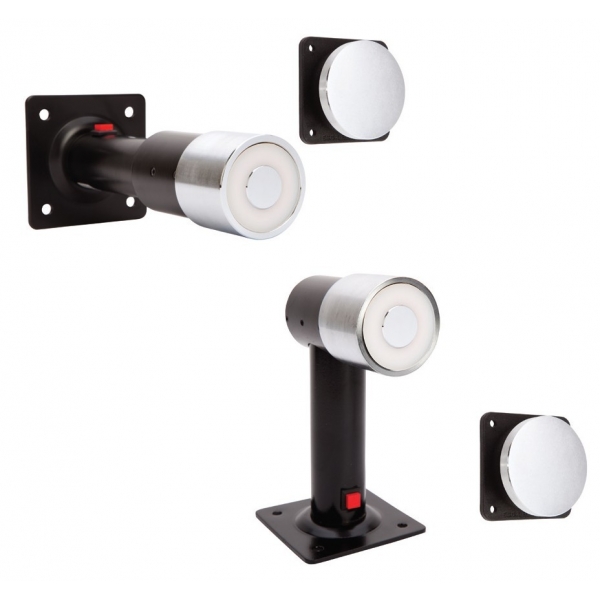

35770/300/90 Fire Rated 300mm 90° Magnetic Door Holder (Wall & Floor Mount)

The 35770/300/90 is a fire-rated heavy-duty magnetic door holder designed to keep fire and smoke doors securely open in everyday use and automatically release them in the event of an alarm. With a robust 300mm extension arm and 90° angled configuration, it is suitable for both floor and wall mounting, offering flexibility in commercial and industrial installations. The unit delivers up to 40kg of holding force and is tested to a fire rating of up to 4 hours, making it compliant for use in fire-rated environments.

Supplied with a sleek titanium alloy surface finish for durability and aesthetics, the 35770/300/90 is available in 12VDC or 24VDC variants. Once power is cut during a fire or smoke alarm event, the door automatically returns to its closed position, helping prevent the spread of fire and smoke. Its fail-safe design and versatility make it an ideal solution for high-traffic safety applications in buildings that require compliant smoke and fire containment measures .

Key Features

  • 300mm extension with 90° angle for floor or wall mounting flexibility
  • Up to 40kg holding force with fire rating up to 4 hours
  • Operates on 12VDC/100mA or 24VDC/50mA power options
  • Automatic release triggered by fire/smoke alarm systems
  • 117 x 90 x 324 mm size with titanium alloy finish and 2-year warranty
  • COLOR SILVER
  • PRODUCT TYPE MAGNETIC DOOR HOLDER
