> >>INDUSTRIAL 2-PORT MULTI-GIGABIT 802.3BT POE++ INJECTOR HUB
New INDUSTRIAL 2-PORT MULTI-GIGABIT 802.3BT POE++ INJECTOR HUB View larger

PLANET

INDUSTRIAL 2-PORT MULTI-GIGABIT 802.3BT POE++ INJECTOR HUB

PLNIPOE-270-12V

IPOE-270-12V

New product

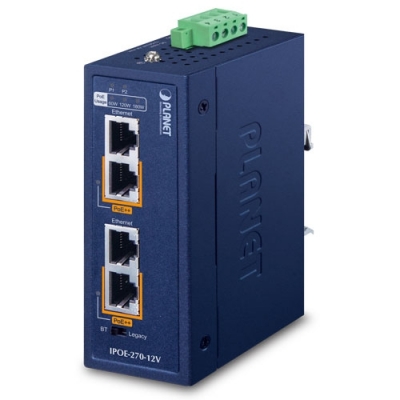

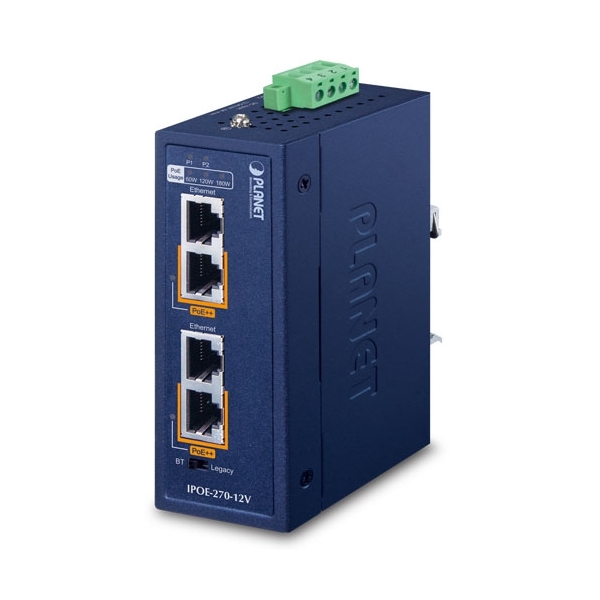

IPOE-270-12V Industrial Multi-Gigabit PoE++ Injector Hub

The IPOE-270-12V is a rugged 2-port industrial-grade PoE++ injector from PLANET supporting up to 95W per port and a total power budget of 180W across two multi-gigabit ports It accepts 12~54VDC input with a built-in boost converter eliminating the need for expensive high-voltage power supplies and is ideal for powering PTZ cameras Wi-Fi 6 access points digital signage and more in remote or harsh environments Its IP30-rated metal enclosure supports DIN-rail or wall mount installations and operates from -40 to 75°C with full 8023bt PoE++ compatibility

Equipped with 10/100/1G/2.5G/5G RJ45 interfaces the IPOE-270-12V features PoE usage LEDs and a DIP switch to toggle between standard 8023bt mode and legacy PoE configurations offering flexible deployment for demanding industrial or commercial PoE applications

Key Features

  • Delivers up to 95W per port 180W total PoE++ output
  • Supports 12~54VDC input with internal voltage booster
  • Dual 10/100/1G/2.5G/5G multi-gigabit PoE ports
  • Wide temperature operation from -40 to 75°C
  • IP30-rated metal housing for DIN-rail or wall mount
  • COLOR BLUE
  • PRODUCT TYPE POE INJECTOR
