> >>INDUSTRIAL 4-PORT 10/100/1000T 802.3BT POE++ INJECTOR HUB WITH 12V BOOSTER
New INDUSTRIAL 4-PORT 10/100/1000T 802.3BT POE++ INJECTOR HUB WITH 12V BOOSTER View larger

PLANET

INDUSTRIAL 4-PORT 10/100/1000T 802.3BT POE++ INJECTOR HUB WITH 12V BOOSTER

PLNIPOE-470-12V

IPOE-470-12V

New product

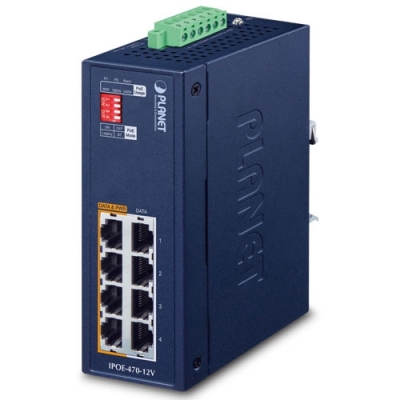

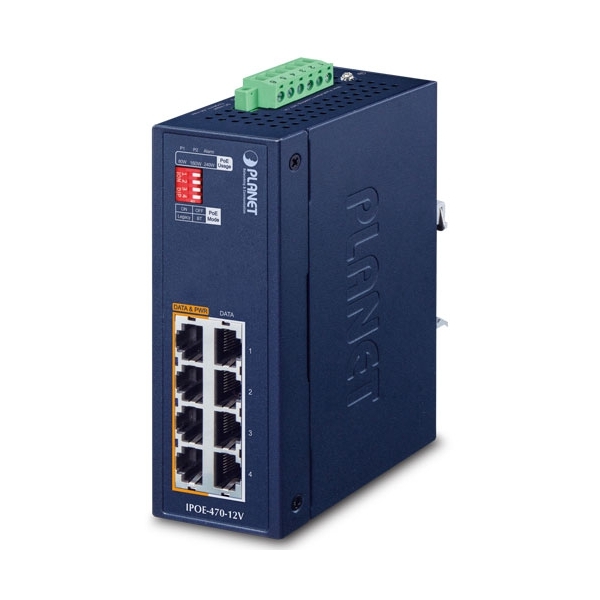

IPOE-470-12V Industrial 4-Port Multi-Gigabit PoE++ Injector Hub

The IPOE-470-12V from PLANET is a heavy-duty 4-port PoE++ injector hub engineered for industrial-grade network deployments delivering up to 95W per port and a total 240W power budget Compliant with IEEE 8023bt it supports multi-gigabit 10/100/1G/2.5G/5G Ethernet and operates with 12–54VDC input via a built-in boost converter making it ideal for powering high-demand devices like PTZ cameras digital signage or Wi-Fi 6 APs in transportation automation and security systems

Encased in an IP30-rated metal enclosure with DIN-rail or wall-mount support the IPOE-470-12V operates in extreme temperatures from -40 to 75°C includes surge and ESD protection and features LED indicators for PoE usage and redundant power status offering a robust plug-and-play solution for high-reliability PoE infrastructure

Key Features

  • Delivers 4 x 95W IEEE 8023bt PoE++ ports with 240W total output
  • Supports 12–54VDC input with integrated voltage booster
  • Dual multi-gigabit RJ45 ports up to 5Gbps
  • IP30-rated metal casing and extended -40 to 75°C temperature range
  • DIN-rail and wall mountable with PoE load and fault LEDs
  • COLOR SILVER
  • PRODUCT TYPE POE INJECTOR
