> >>GARLAND SECURITY CABLE 14/0.20 4 CORE STRANDED UNSCREENED PVC SHEATH 300M WHITE
New GARLAND SECURITY CABLE 14/0.20 4 CORE STRANDED UNSCREENED PVC SHEATH 300M WHITE View larger

GARLAND

GARLAND SECURITY CABLE 14/0.20 4 CORE STRANDED UNSCREENED PVC SHEATH 300M WHITE

MADMC144WH300BW

MC144WH300BW

New product

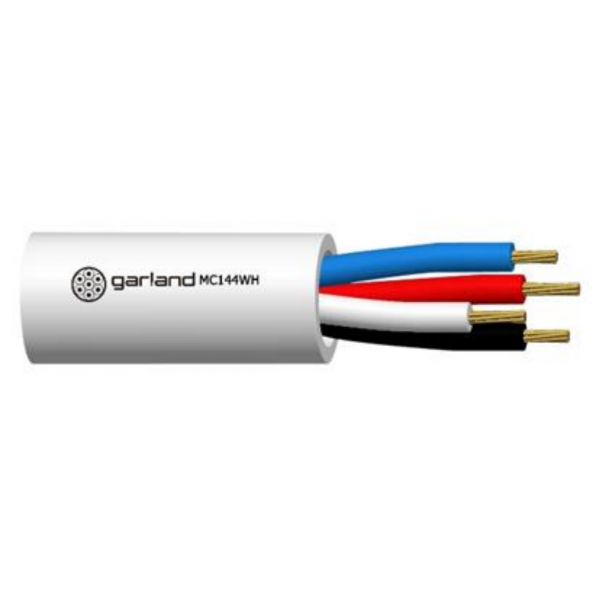

MC144WH300BW Garland Security Cable 21AWG 4 Core - 300m Reel White

The MC144WH300BW is a high-quality unscreened security and alarm cable designed for ELV interconnecting wiring in intruder alarm systems and intercom installations. Built as a stranded 21AWG 4 core cable with PACW conductors (14 x 0.20 mm strands) and durable V-75 PVC insulation plus a PVC outer sheath, it delivers flexible handling and reliable low-voltage signal performance in everyday commercial and residential fit-outs.

Ideal for security alarm wiring, access control, and low current intercommunication runs, it features a white PVC jacket (approx. 4.7 mm overall diameter) for a clean installation finish and easy routing, with core colours white blue red and black for fast termination. The cable is rated ELV, supports up to 120 N recommended pulling tension with a 50 mm minimum install bend radius, and is manufactured to AS/CA S-008, BS4737-3.30, and AS 1049 requirements, making it a dependable choice for professional installers (not suitable for mains connection).

Key Features

  • 21AWG 4 core unscreened security cable for alarm and intercom low voltage wiring
  • Stranded PACW conductors 14 x 0.20 mm for flexibility and dependable connectivity
  • V-75 PVC insulated cores with PVC sheath for robust everyday protection and easy pulling
  • ELV rated and manufactured to AS/CA S-008 BS4737-3.30 and AS 1049
  • Supplied as a 300 m white reel for efficient site use and reduced joints on longer runs
  • COLOR WHITE
  • PRODUCT TYPE SECURITY CABLE
