SECURITY CABLE BCUGS41402-300 14/0.20 4 CORE STRANDED UNDERGROUND JEL FILLED UNSCREENED PVC SHEATH 300M BLACK
CBLSEC140204C/JF-300BLK
BCUGS41402-300
New product

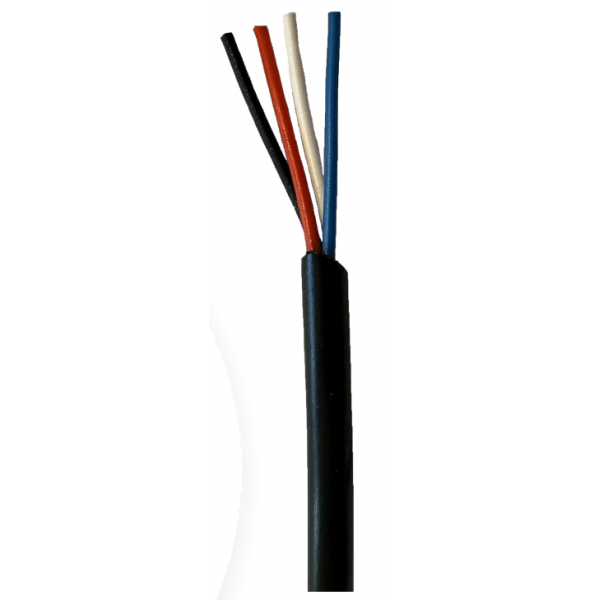

BCUGS41402-300 Radum Jelly Filled Security Cable 4-Core 14-0-20mm 300m Drum Black
The BCUGS41402-300 is a high-quality 4 core jelly filled security cable designed for underground interconnection of data terminals and communication equipment in harsh outdoor environments. Supplied on a 300m drum, it features stranded 21 AWG bare copper conductors in a 14 x 0.20mm construction with polypropylene insulation and a moisture-blocking jelly filled polyester tape layer to ensure dependable signal integrity and long service life in direct burial installations.
Ideal for security, access control, intercoms, and low-voltage communications runs, it is rated for ELV applications and delivers robust mechanical protection with a tough black polyethylene sheath for excellent weather and soil resistance. With a wide operating temperature range of -30 to 70C, a maximum recommended pulling tension of 166N, and a minimum bend radius of 65mm, it is a reliable choice for contractors needing durable underground security cable on a convenient 300m drum.
Key Features
- 4 core stranded bare copper conductors 21 AWG 14 x 0.20mm for stable low-voltage performance
- Jelly filled moisture barrier with 100 percent coverage polyester tape for direct burial protection
- Polypropylene core insulation with 0.3mm nominal thickness and 1.5mm nominal core OD
- Black polyethylene sheath 0.6mm nominal thickness 4.5mm nominal overall OD for outdoor durability
- 300m drum length with white sheath printing and ELV rating for underground security and communications cabling
- COLOR BLACK
- PRODUCT TYPE SECURITY CABLE
