> >>GARLAND MC144WH300B SECURITY CABLE 14/0.20 4 CORE STRANDED PVC SHEATH 300M BOX WHITE
New GARLAND MC144WH300B SECURITY CABLE 14/0.20 4 CORE STRANDED PVC SHEATH 300M BOX WHITE View larger

GARLAND

GARLAND MC144WH300B SECURITY CABLE 14/0.20 4 CORE STRANDED PVC SHEATH 300M BOX WHITE

MADMC144WH300B

MC144WH300B

New product

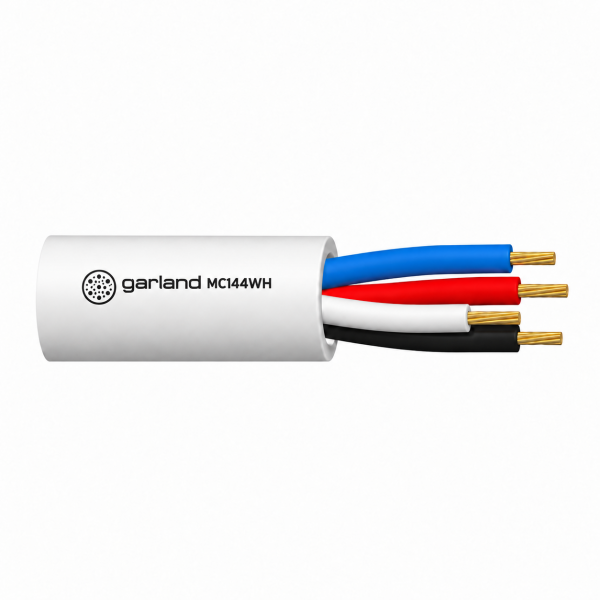

MC144WH300B 4-Core 14/0.20 mm PVC Security Cable - White 300 m Reel Box

The Garland MC144WH300B is a four-core stranded security cable supplied in a 300 m reel box. Each 0.44 mm² PACW conductor uses 14/0.20 mm stranding and PVC insulation, with white, blue, red and black core identification beneath a white PVC outer sheath. The completed cable has a nominal outside diameter of 4.7 mm.

The cable is designed for ELV interconnecting wiring in security and intruder alarm systems, as well as low-voltage, low-current intercommunication applications. The datasheet lists AS/ACIF S008 and BS4737-3.30 as applicable standards, with an operating temperature range of -15 to 70°C and specified pulling-tension and bend-radius limits.

Key Features

  • Four individually coloured cores for circuit identification and termination
  • 300 m reel-box configuration for longer installation runs
  • Compact 4.7 mm nominal outside diameter for cable pathways
  • Specified pulling-tension and bend-radius limits for installation handling
  • Operating temperature range of -15 to 70°C
  • Colour White
  • Warranty 12 Months
  • Brand GARLAND
  • Cable Type SECURITY
  • Size 14/0.20
  • Single Core 4 CORE
  • Solid/Stranded STRANDED
  • Sheath PVC
  • Cable Length (m) 300M
  • Storage Type BOX
