> >>FSH FSS1-S FSS1 SERIES DOOR SENSOR 1-7MM DOOR MISALIGN SURFACE MOUNT CONDUIT VERSION IP67 SIL
FSH HIGH SECURITY ELECTRIC DOOR SENSOR STAINLESS STEEL MONITORED DSS SURFACE MOUNTED IP67 SCEC RATED NO FIRE R View larger

FSH

FSH FSS1-S FSS1 SERIES DOOR SENSOR 1-7MM DOOR MISALIGN SURFACE MOUNT CONDUIT VERSION IP67 SIL

FSHFSS1-S

FSS1-S

New product

FSH FSS1-S HIGH SECURITY DOOR MONITORING SENSOR SURFACE MOUNT IP67 SILVER

More details

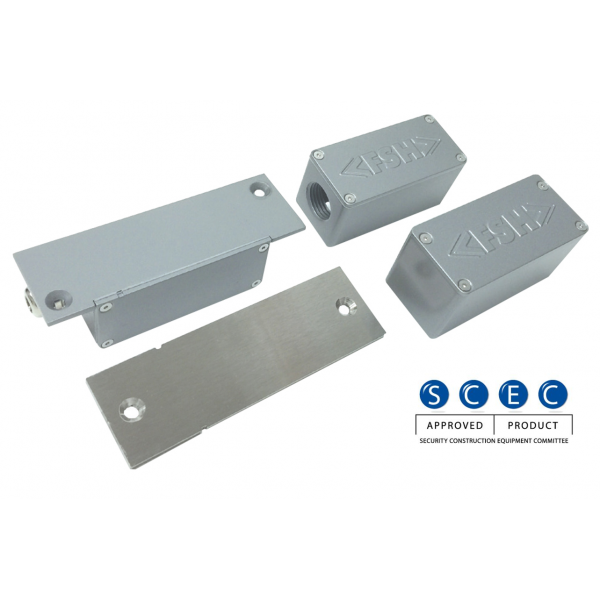

FSS1-S FSH High Security Surface-Mount Door Monitoring Sensor - Conduit Version

The FSH FSS1-S is a surface-mounted high-security door-position sensor with conduit cable entry. Seven Hall-effect sensors analyse a unique magnetic footprint, supporting door gaps from 1-7 mm and door movement of up to 15 mm.

The sensor is IP67 rated, RCM compliant and SCEC approved to Security Level 4. Its magnetic-array detection and anti-tamper functions support door monitoring in high-security government and military installations.

Key Features

  • On-site reprogrammable design supports installer calibration
  • Threaded cable entry accommodates conduit connection
  • Internal space supports Type 1 and Type 2 end-of-line modules
  • Alarm and tamper contacts provide changeover outputs for access-control systems
  • Operates from 10-30 V DC with typical current consumption of 50 mA
  • Compliance IP67
  • Warranty 60 Months
  • COLOR SILVER
  • PRODUCT TYPE DOOR SENSOR
  • Brand FSH
  • Unit Dimensions (mm) 34H x 75W x 35D
  • Series FSS1 SERIES
  • Features SURFACE MOUNT CONDUIT VERSION
  • Door Misalignment 1-7mm
