> >>FSH FSS1-F FSS1 SERIES DOOR SENSOR 7 HALL EFFECTS SENSORS IP67 STAINLESS STEEL

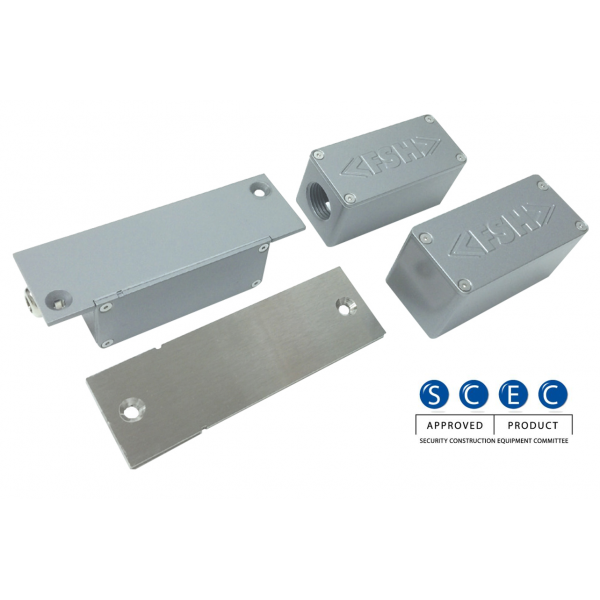

FSH HIGH SECURITY ELECTRIC DOOR SENSOR STAINLESS STEEL MONITORED DSS RECESSED MOUNTED IP67 SCEC RATED NO FIRE View larger

FSH

FSH FSS1-F FSS1 SERIES DOOR SENSOR 7 HALL EFFECTS SENSORS IP67 STAINLESS STEEL

FSHFSS1-F

FSS1-F

New product

FSH FSS1-F HIGH SECURITY DOOR MONITORING SENSOR RECESSED IP67 SILVER

More details

FSS1-F FSH Flush Mount High Security Door Monitoring Sensor - IP67 SL4

The FSH FSS1-F is the flush-mounted morticed version of the FSS1 Series High Security Door Monitoring Sensor. Seven Hall effect sensors detect a unique magnetic footprint produced by an array of up to eight magnets, monitoring the face plate position and changes in magnet polarity, size, strength and position.

Developed for high-security government and military applications, the sensor incorporates cover-removal tamper switches and a separate switch that detects removal from the door frame. It is IP67 rated, RCM compliant, SCEC approved to Security Level 4 and designed and manufactured in Australia.

Key Features

  • On-site reprogrammability supports configuration for the installed door
  • Operates from 10 to 30 V DC with a typical current draw of 50 mA
  • Accommodates door gaps from 1 to 7 mm and door movement up to 15 mm
  • Alarm and tamper contacts include changeover connections for access control systems
  • Provides internal space for Type 1 and Type 2 end-of-line modules
  • Compliance IP67
  • Warranty 60 Months
  • COLOR STAINLESS STEEL
  • PRODUCT TYPE DOOR SENSOR
  • Brand FSH
  • Unit Dimensions (mm) 110H x 35W x 32D
  • Series FSS1 SERIES
  • Features 7 HALL EFFECTS SENSORS
