> >>FSH FSS1-S-NC FSS1 SERIES DOOR SENSOR 7 HALL EFFECTS SENSORS 1-7MM RDR DISTANCE SL4 SECURITY LEVEL SCEC APPROVED
FSH HIGH SECURITY ELECTRIC DOOR SENSOR - NO CONDUIT STAINLESS STEEL MONITORED DSS SURFACE MOUNTED IP67 SCEC RA View larger

FSH

FSH FSS1-S-NC FSS1 SERIES DOOR SENSOR 7 HALL EFFECTS SENSORS 1-7MM RDR DISTANCE SL4 SECURITY LEVEL SCEC APPROVED

FSHFSS1-S-NC

FSS1-S-NC

New product

FSH FSS1-S-NC SURFACE MOUNT NO CONDUIT DOOR MONITORING SENSOR IP67 SILVER

More details

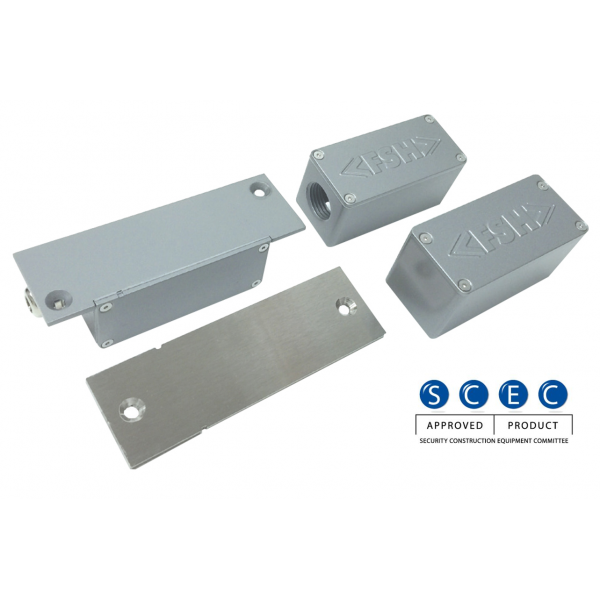

FSS1-S-NC High Security Surface Mount Door Monitoring Sensor - No Conduit

The FSS1-S-NC is a surface mount high security door monitoring sensor that uses seven magnetic sensors to recognise the unique magnetic footprint of its faceplate. One sensor monitors faceplate position, while the other six assess the polarity, size, strength and position of the magnet array against a memorised pattern, providing secure door-position supervision with sophisticated anti-tamper capability.

Designed for government, correctional and military installations, this Australian-designed and manufactured sensor operates from 10-30 V DC at less than 75 mA and accommodates door gaps from 1-7 mm. Its IP67 rating, RCM compliance and SCEC approval at Security Level 4 provide documented environmental and security credentials for demanding monitored-door applications.

Key Features

  • Provides a surface mount upgrade path from traditional magnetic balanced reed sensors
  • Rear cable entry supports installer-tailored routing without a threaded conduit entry
  • On-site reprogrammability supports configuration during installation
  • Multiple cover tamper switches help detect unauthorised removal of the sensor cover
  • Internal space for Type 1 and Type 2 end-of-line modules supports contained monitored-circuit integration
  • Compliance SL4 SECURITY LEVEL SCEC APPROVED
  • Warranty 60 Months
  • COLOR SILVER
  • PRODUCT TYPE DOOR SENSOR
  • Brand FSH
  • Unit Dimensions (mm) 34H x 35D
  • Series FSS1 SERIES
  • Features 7 HALL EFFECTS SENSORS
  • Distance To Read 1-7mm
