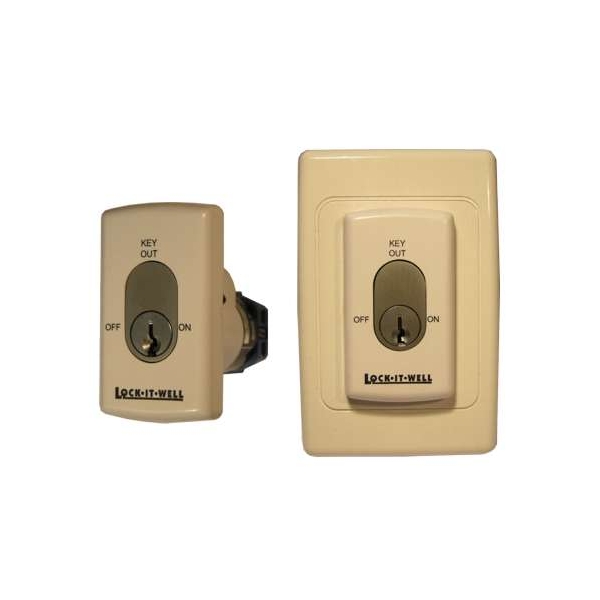

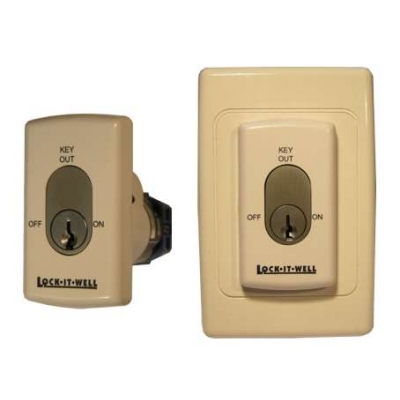

Lock It Well Oval 1 Lazy Cam Key Switch OL125105 1NO-1NC

The LOCK IT WELL OL125105 OVAL 1 is a high-quality key operated changeover switch designed for secure electrical isolation and controlled access in switchboards, control panels, and industrial equipment. Measuring 70x40mm with an approximate body depth of 58mm 1-stage or 66mm 2-stage, it features a high-strength insulated Grivory flame resistant self-extinguishing body and high-quality switch contacts to ensure reliable switching performance and enhanced safety.

Ideal for maintenance lockout, machine control, and restricted-area switching, it incorporates a standard oval lock cylinder that can be removed and reassembled without switch removal, supports master keying into common lock brands and high security lock systems, and offers a lazy cam mechanism for key removal in both OFF and ON positions for flexible site procedures, making it suitable for demanding commercial and industrial environments.

Key Features

  • OL125105 Oval 1 key switch with 1 N/O and 1 N/C changeover contacts for dependable control
  • High strength insulated Grivory body with flame resistant self-extinguishing construction for safer installations
  • Lazy cam action allows key removal in OFF and ON positions captive key option available
  • Standard oval cylinder design electrically isolated and easily removable without taking out the switch
  • Supplied complete with 570 Series compatible cylinder and two keys plus 115x70 Clipsal 2000 Series mounting plate
  • COLOR WHITE
  • PRODUCT TYPE DOOR LOCK
