> >GALLAGHER C500120 SMB METAL SECURITY ENCLOSURE 3.5A POWER SUPPLY 1X FULL FOOTPRINT HALF FOOTPRINT SUPPORT IP44
New GALLAGHER C500120 SMB METAL SECURITY ENCLOSURE 3.5A POWER SUPPLY 1X FULL FOOTPRINT HALF FOOTPRINT SUPPORT IP44 View larger

GALLAGHER

GALLAGHER C500120 SMB METAL SECURITY ENCLOSURE 3.5A POWER SUPPLY 1X FULL FOOTPRINT HALF FOOTPRINT SUPPORT IP44

GALC500120

C500120

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

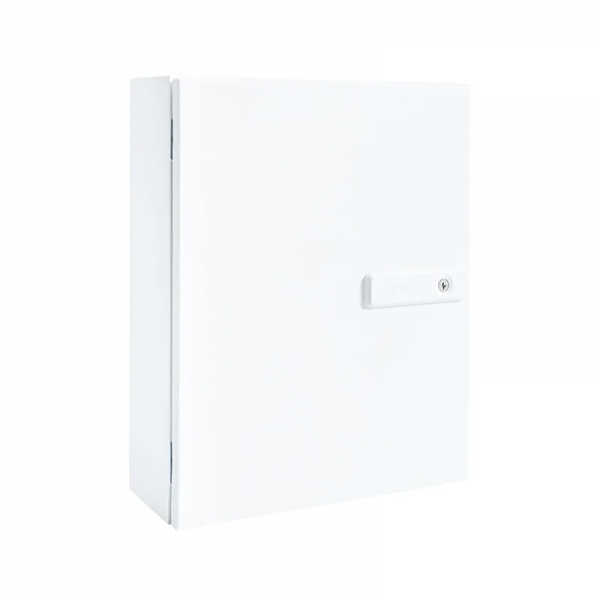

C500120 Gallagher SMB Steel Security Cabinet - 3.5 A Power Supply

The Gallagher C500120 SMB Cabinet is a steel security enclosure designed to accommodate a Gallagher SMB Controller and I/O boards within a single footprint. Measuring 500 x 480 x 150 mm, the cabinet includes a 3.5 A power supply and provides centralised housing for system control hardware.

The cabinet is suitable for Gallagher SMB security installations and supports optical front and rear tamper detection. The integrated power supply supports mains-failure and low-battery monitoring. The cabinet features approximately 1 mm thick steel construction, an operating temperature range of -10 °C to 50 °C, up to 95% non-condensing humidity tolerance and an IP44 protection rating.

Key Features

  • Accommodates Gallagher SMB control equipment within a single enclosure
  • Includes a 3.5 A power supply for system hardware
  • Supports optical front and rear tamper detection
  • Supports mains-failure and low-battery monitoring
  • Features IP44 protection and an operating temperature range of -10 °C to 50 °C
  • IP Rating IP44
  • Material Steel
  • Warranty 60 Months
  • PRODUCT TYPE ENCLOSURE
  • Brand GALLAGHER
  • Unit Dimensions (mm) 500H x 480W x 150D
  • Series SMB
