> >GALLAGHER C300688 SMB HBUS INPUT/OUTPUT MODULE 16X INPUTS 16X OUTPUTS RS-485 4K7 TERMINATION 13.6VDC 30HX180WX180D (MM)

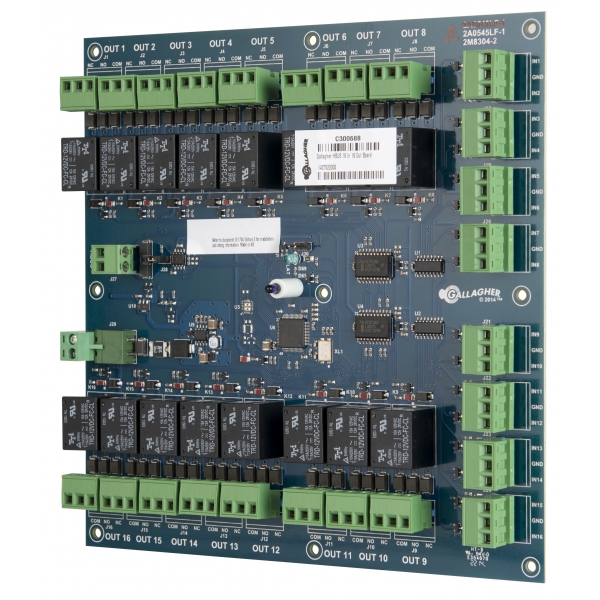

GALLAGHER C300688 SMB HBUS 16IN 16OUT I/O BOARD 24V DC/AC RELAYS 13.6VDC 4K7 TERM 180Hx180Wx30D (MM) View larger

GALLAGHER

GALLAGHER C300688 SMB HBUS INPUT/OUTPUT MODULE 16X INPUTS 16X OUTPUTS RS-485 4K7 TERMINATION 13.6VDC 30HX180WX180D (MM)

GALC300688

C300688

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

C300688 Gallagher SMB HBUS 16 Input 16 Output I/O Board

The Gallagher C300688 HBUS 16In 16Out Board is an expansion module for the Gallagher SMB security solution, providing 16 four-state balanced inputs and 16 relay outputs. It reports field-device conditions to the SMB Controller 6000 and switches its outputs according to controller instructions.

The board can monitor access-controlled or uncontrolled doors, PIR detectors, equipment alarms and other clean-contact devices. Its relays can support actions such as unlocking doors or activating sirens, while encrypted RS-485 HBUS communication enables connection to the controller over distances up to 500 m.

Key Features

  • Expands a Gallagher SMB system with additional detection points and controlled outputs
  • Four-state input supervision identifies open, closed and circuit-tamper conditions
  • Clean-contact support accommodates doors, PIR detectors and equipment alarms
  • Controller-directed relays enable automated responses based on timers or configured logic
  • Daisy-chainable HBUS connectivity supports secure and scalable field-device installation
  • Inputs 16x INPUTS
  • Outputs 16x OUTPUTS
  • Warranty 60 Months
  • PRODUCT TYPE HBUS INPUT/OUTPUT MODULE
  • Brand GALLAGHER
  • Unit Dimensions (mm) 30H x 180W x 180D
  • Series SMB
  • Power 13.6VDC
  • Connection Type RS-485
  • Termination Type 4K7 TERMINATION
