> >GALLAGHER C300491 SMB T30 RS485 HBUS PROX KEYPAD READER IK09 WHITE 9-16VDC 118HX86WX26.7D (MM)
GALLAGHER C300491 SMB T30 KEYPAD READER BLE NFC IP68 IK09 WHITE 118Hx86Wx26.7D (MM) View larger

GALLAGHER

GALLAGHER C300491 SMB T30 RS485 HBUS PROX KEYPAD READER IK09 WHITE 9-16VDC 118HX86WX26.7D (MM)

GALC300491

C300491

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

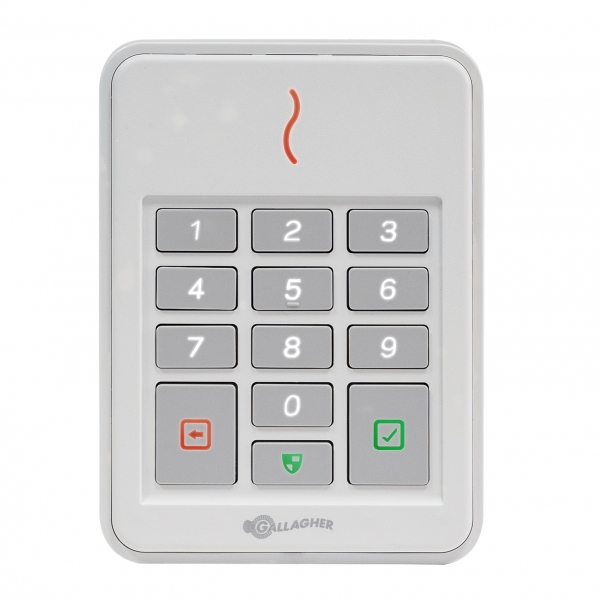

C300491 Gallagher SMB T30 Keypad Reader White

The C300491 Gallagher SMB T30 Keypad Reader is a white contactless security reader designed for site arming, disarming and controlled door access. It supports keypad User Codes and Gallagher SMB Key Tags and Cards, while the Gallagher SMB app enables arming and disarming via Bluetooth and access via Bluetooth or NFC.

At the door, clear indications show both the site's armed or disarmed condition and the door's locked or unlocked state. With IP68 environmental protection, an IK09 impact rating and an operating range of -35 °C to +70 °C, the 118 x 86 x 26.7 mm reader is suited to demanding Gallagher SMB access control installations.

Key Features

  • Local Bluetooth operation maintains site control when internet connectivity is unavailable
  • Secure reader authentication and encrypted communications help protect data exchange
  • Real-time heartbeat monitoring provides ongoing visibility of reader status
  • High-speed RS485 HBUS communications support responsive access decisions
  • Gallagher's stated lifetime warranty provides long-term manufacturer backing
  • IP Rating IP68
  • Warranty LIMITED LIFETIME
  • COLOR WHITE
  • PRODUCT TYPE PROX KEYPAD READER
  • Brand GALLAGHER
  • Unit Dimensions (mm) 118H x 86W x 26.7D
  • Series SMB T30
  • Power 9-16VDC
  • Card Type MIFARE DESFIRE EV2/EV3 4K
  • Recognition Distance 60MM
  • IK Rating IK09
  • Connection RS485 HBUS
