> >GALLAGHER C300698 HBUS 8-PORT HUB 8X HBUS RS-485 I/P 1X HBUS RS-485 OUTPUT RS-485 PCB EXTENDS HBUS UPTO 1KM

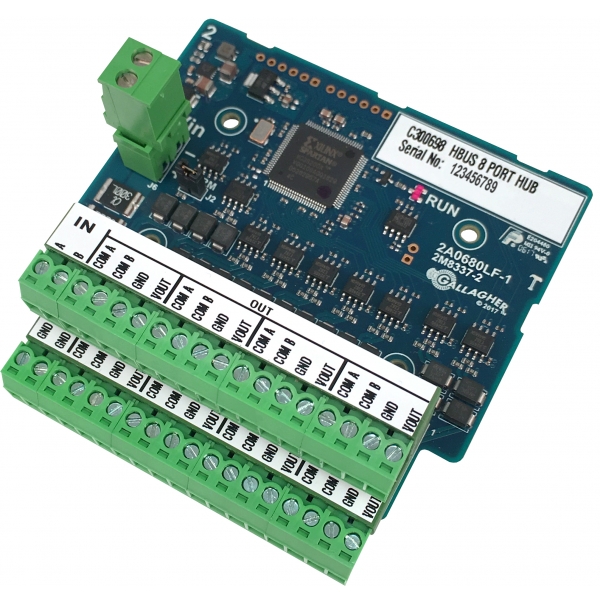

GALLAGHER C300698 SMB HBUS 8 PORT HUB 8X HBUS RS-485 IN 1X HBUS OUT REPEATER UPTO 1000M PCB View larger

GALLAGHER

GALLAGHER C300698 HBUS 8-PORT HUB 8X HBUS RS-485 I/P 1X HBUS RS-485 OUTPUT RS-485 PCB EXTENDS HBUS UPTO 1KM

GALC300698

C300698

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

C300698 Gallagher SMB HBUS 8 Port RS-485 Hub

The Gallagher C300698 HBUS 8 Port Hub consolidates data from up to eight downstream HBUS RS-485 wiring runs into a single upstream connection. Multiple HBUS devices can be connected across all eight downstream runs, with support for additional devices further upstream from the hub.

HBUS RS-485 signal regeneration allows the hub to operate as a repeater when greater cabling distance is required, extending the standard 500 m range to a maximum of 1,000 m with one hub. Its quarter-footprint PCB format also allows up to four hubs to be mounted on one Gallagher hardware footprint.

Key Features

  • Consolidates eight downstream HBUS data runs into one upstream connection
  • Supports multiple HBUS devices across every downstream RS-485 run
  • Accommodates additional upstream devices for flexible system expansion
  • Regenerates the HBUS signal to provide a total range of up to 1,000 m with one hub
  • Quarter-footprint design allows four hubs to share one Gallagher hardware footprint
  • Inputs 8x HBUS RS-485 INPUT
  • Outputs 1x HBUS RS-485 OUTPUT
  • Warranty 60 Months
  • PRODUCT TYPE HBUS 8-PORT HUB
  • Brand GALLAGHER
  • Features EXTENDS HBUS UPTO 1KM
  • Connection Type RS-485
  • Mounted PCB
