> >GALLAGHER C300490 SMB T30 RS485 HBUS READER WITH KEYPAD IK09 BLACK 9-16VDC 118HX86WX26.7D (MM)
GALLAGHER C300490 SMB T30 KEYPAD READER BLE NFC IP68 IK09 BLACK 118Hx86Wx26.7D (MM) View larger

GALLAGHER

GALLAGHER C300490 SMB T30 RS485 HBUS READER WITH KEYPAD IK09 BLACK 9-16VDC 118HX86WX26.7D (MM)

GALC300490

C300490

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

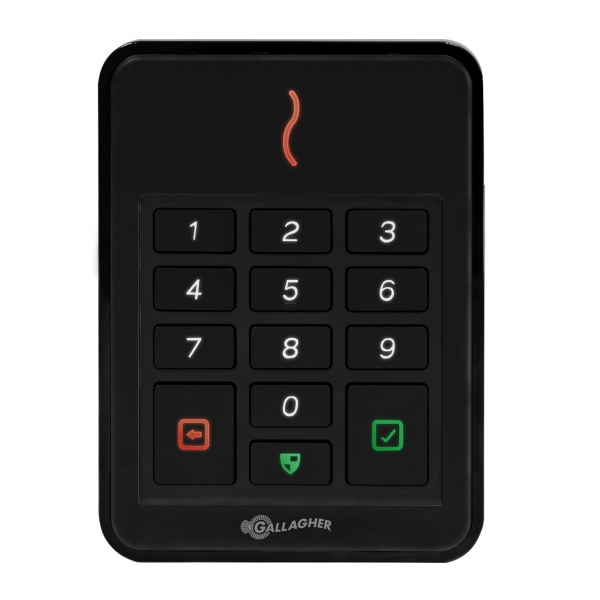

C300490 Gallagher SMB T30 Black Keypad Reader

The C300490 Gallagher SMB T30 is a black keypad reader for contactless site arming, disarming and door access control. It supports user codes, Gallagher SMB Key Tags and SMB Cards, as well as local Bluetooth or NFC access and remote operation through the Gallagher SMB app. Secure reader authentication and encrypted data communications help protect exchanges with the security system.

Designed for demanding entry points, the T30 combines IP68 environmental protection, an IK09 impact rating and an operating temperature range of -35°C to +70°C. Its high-speed RS485 HBUS connection supports responsive access decisions and HBUS data cabling runs of up to 500 m using Cat5e or Gallagher HBUS cable.

Key Features

  • Brings keypad, card, key tag and mobile credential options together at one entry point
  • Maintains local arming and disarming through Bluetooth during internet interruptions
  • Makes site and door security states easier for users to verify
  • Supports installation at exposed and demanding access points
  • Enables proactive oversight through real-time reader status monitoring
  • IP Rating IP68
  • Warranty LIMITED LIFETIME
  • COLOR BLACK
  • PRODUCT TYPE READER WITH KEYPAD
  • Brand GALLAGHER
  • Unit Dimensions (mm) 118H x 86W x 26.7D
  • Series SMB T30
  • Power 9-16VDC
  • Card Type MIFARE DESFIRE EV2/EV3 4K
  • Recognition Distance 60MM
  • IK Rating IK09
  • Connection RS485 HBUS
