> >GALLAGHER C500304 GALC500304 SMB 1 DOOR KIT INCLUDES SMB CONTROLLER 6000 T15 READER BLACK SMB HBUS 8X INPUT SMB HBUS 8X INPUT 4X
GALLAGHER C500304 SMB KIT 1X CONTROLLER 1X T15 READER 1X HBUS 8IN 1X HBUS 8IN 4OUT 1X 3.5A PSU BLACK View larger

GALLAGHER

GALLAGHER C500304 GALC500304 SMB 1 DOOR KIT INCLUDES SMB CONTROLLER 6000 T15 READER BLACK SMB HBUS 8X INPUT SMB HBUS 8X INPUT 4X

GALC500304

C500304

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

C500304 Gallagher SMB Base Kit with T15 Multi Tech Reader - Black

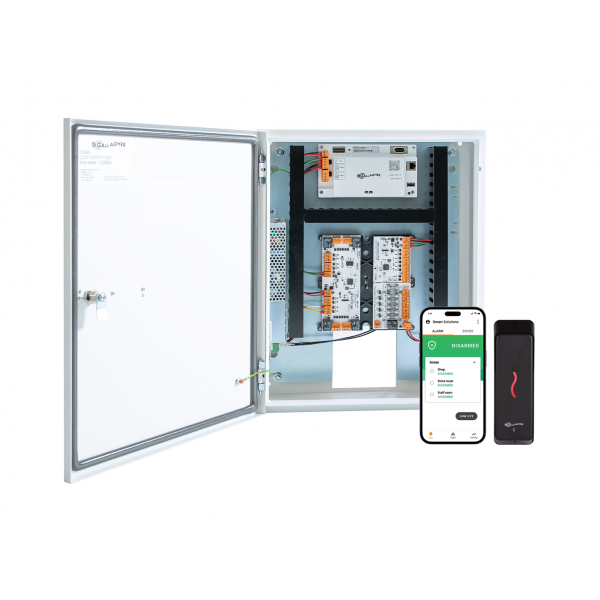

The C500304 Gallagher SMB Base Kit contains the core hardware for a Gallagher SMB intruder alarm and access control solution operated through a smartphone app. This T15 configuration combines the SMB cabinet and controller with an HBUS 8-input board, an HBUS 8-input/4-output board, a fire relay and fuse board, a 3.5 A power supply and a black SMB T15 Multi Tech Reader.

The package also includes an I/O board mounting plate, a metal mounting plate with ducting, earth wires, a rear tamper light pipe, internal wiring assemblies, two cabinet keys and 32 x 4.7 kΩ resistors. It provides a coordinated foundation for an SMB security installation, with 7 Ah 12 V standby batteries and an IEC power lead sourced separately.

Key Features

  • Single-kit format simplifies procurement of the central SMB control and reader hardware
  • Replaceable main modules support practical ongoing system maintenance
  • Dedicated mounting and ducting provisions help keep the cabinet assembly organised
  • Included wiring and earthing components support a structured installation process
  • Controller HBUS and T15 reader configuration provides a coordinated base for alarm and access control
  • Warranty 60 Months
  • COLOR BLACK
  • PRODUCT TYPE 1-DOOR KIT
  • Brand GALLAGHER
  • Series SMB
  • Input 8x INPUTS
  • Output 4x OUTPUTS
