> >GALLAGHER C300481 SMB T15 RS485 HBUS MULTI TECH READER IK07 WHITE 9-16VDC 139HX44WX23D (MM)
GALLAGHER C300481 T15 MULLION READER BLE NFC IP68 50mm WHITE 139Hx44Wx23D (MM) View larger

GALLAGHER

GALLAGHER C300481 SMB T15 RS485 HBUS MULTI TECH READER IK07 WHITE 9-16VDC 139HX44WX23D (MM)

GALC300481

C300481

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

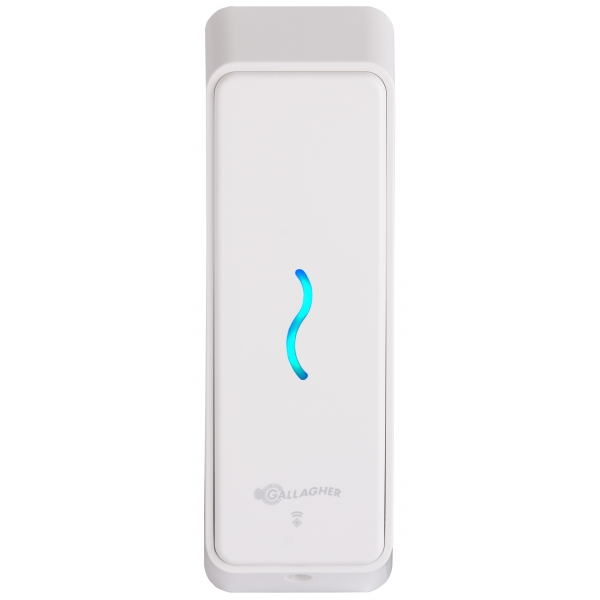

C300481 Gallagher SMB T15 White Slim Mullion Reader

The C300481 Gallagher SMB T15 is a white slim-format reader for contactless site arming, disarming and door access control. It supports Gallagher SMB Key Tags and SMB Cards using MIFARE DESFire technology, together with mobile access through the Gallagher SMB app via Bluetooth or NFC.

Its compact 139 x 44 x 23 mm profile suits space-conscious mounting positions, while IP68 environmental protection, an IK07 impact rating and an operating range of -35°C to +70°C support demanding installations. Secure reader authentication, encrypted data communication and high-speed RS485 HBUS connectivity help provide protected and responsive operation.

Key Features

  • Slim profile supports neat integration at narrow doorway and mullion locations
  • White finish provides a coordinated option for lighter installation surfaces
  • Accommodates key tag, card, Bluetooth and NFC access methods
  • Maintains local Bluetooth arming and disarming during internet interruptions
  • Provides clear visual feedback for site and door security states
  • IP Rating IP68
  • Warranty LIMITED LIFETIME
  • COLOR WHITE
  • PRODUCT TYPE MULTI TECH READER
  • Brand GALLAGHER
  • Unit Dimensions (mm) 139H x 44W x 23D
  • Series SMB T15
  • Power 9-16VDC
  • Authentication Type CARD / MOBILE CREDENTIAL
  • Card Type MIFARE DESFIRE EV2/EV3 4K
  • Recognition Distance 50MM MAX
  • IK Rating IK07
  • Connection RS485 HBUS
