> >>BOSCH CM760B REAL TIME CLOCK MODULE RS485 LAN CONNECTION SUITS SOL6000 PANEL

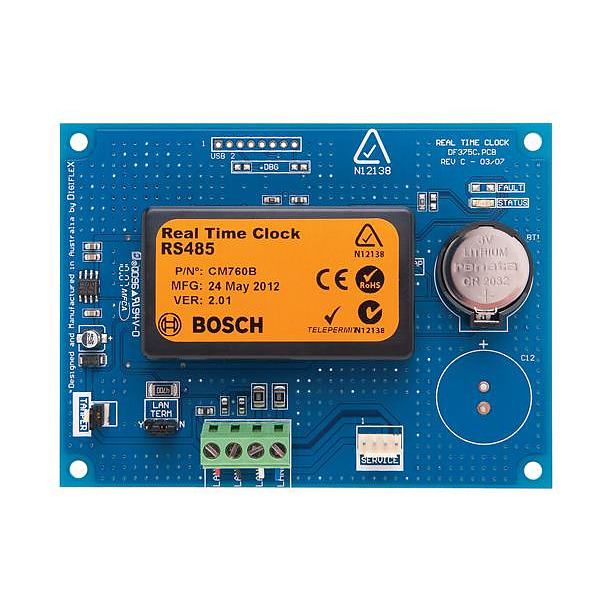

Realtime Clock Interface Module (RS485) View larger

BOSCH

BOSCH CM760B REAL TIME CLOCK MODULE RS485 LAN CONNECTION SUITS SOL6000 PANEL

BOSCM760B

CM760B

New product

Realtime Clock Interface Module (RS485)

More details

BOSCM760B Bosch CM760B Real Time Clock Module 115x86x30mm-1-Pack

The BOSCM760B is a high-quality real time clock (RTC) module designed for Bosch Solution 6000 intrusion and access control systems that require stable, accurate time for schedules and timed door locking functions. Measuring 115(W)x86(D)x30(H)mm, it features a 3V lithium CR2032 backup battery and an RS485 LAN interface to ensure reliable timekeeping and automatic panel clock synchronisation even during power interruptions.

Ideal for security installations needing dependable event logs and time-based automation, it supports LAN monitored encrypted communications with anti-substitution protection, includes a dedicated tamper input, and provides local low-battery fault indication for proactive maintenance. Compliant with CE (EN 55022:2010 and EN 60950-1:2001) and Telepermit PTC 211/12/017, it is a robust choice for commercial-grade alarm panel deployments in controlled indoor environments.

Key Features

  • High accuracy time source: better than +/- 2 minutes per calendar year for dependable schedules and audit trails
  • Battery-backed RTC using 3V lithium CR2032 with approx. 3-year life and hourly low/missing battery monitoring
  • Simple RS485 LAN connection with monitored encrypted data plus anti-substitution for secure system integration
  • Dedicated tamper input and local low-battery fault indicator to enhance system integrity and serviceability
  • 1 module per system; operates on 10.5–14.0V DC at 50mA standby; LAN cabling up to 300m (security cable) or 1200m (Belden 8723) and rated 0–55°C
  • Dimensions (H x W x D) 115 x 86 x 30mm
  • Operating Temperature 0 to 55 ° C
  • Warranty 3 Years
  • COLOR BLUE
  • PRODUCT TYPE TIMER BOARD
