Solution 6000 Universal Expander Kit

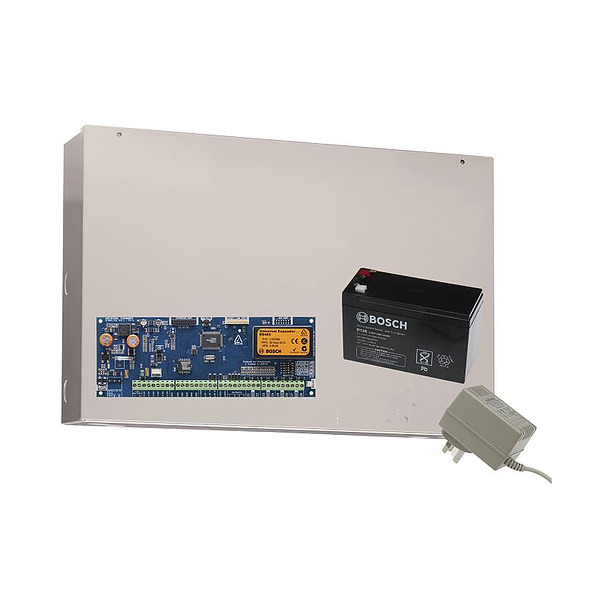

The Universal expander is bundle with the 6000 enclosure (MW350), 18VAC 1.33AMP P/S and a 12V 7AMP Backup Battery to complete the kit.

The CM705B Universal Expander provides a cost effective way to increase the control panel’s zone inputs, programmable outputs and power supply capacity using a single expander module. This module is extremely useful when the system is comprised of multiple areas, as an expander can be located in each area, providing power, siren and strobe outputs and up to 16 zone inputs.

The module connects to the control panel via the 4-wire encrypted RS485 LAN, and must be assigned a unique address on the LAN via the address DIP switch.

The optional CM707B plug on module can be added via the expansion port on the CM705B Universal Expander to provide an additional 8 hard wired zone inputs, bringing the CM705B Universal Expander to 16 hard wired zone inputs for Alarm + Tamper, 4 state monitoring or single EOL configurations.

Features

• High security module with anti-substitution protection and resettable fuse protection on power out terminals
• Supports Single, Alarm+Tamper and Split EOL, with up to 15 different EOL Resistor options
• 6 Power Out terminals simplify wiring; outputs are overload and short circuit proof
• Service Code Pad connection point
• LAN Termination Shunt and status indicators included
• 18VAC 1.33AMP Power Supply
• 12V 7AMP Backup Battery
