Solution Wiegand to RS485 Lan Module

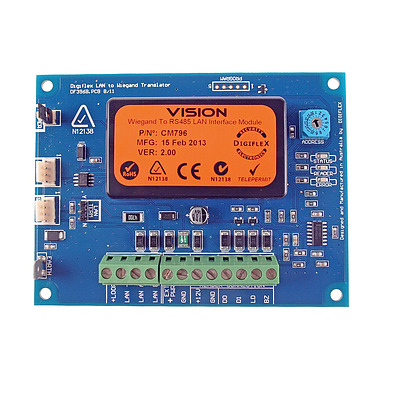

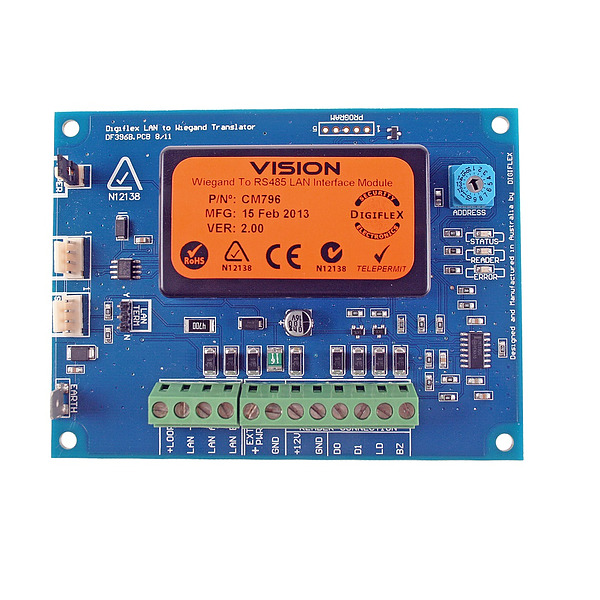

The CM796 Wiegand to RS485 LAN Interface Module has been developed to allow 3rd party Wiegand proximity readers to be
interfaced to the Vision-X and other compatible Vision control panels. The module supports Wiegand formats from 26bit to 40bit
and includes support for LED and buzzer control.

The CM796 is ideally suited to applications where the site already has existing Wiegand hardware and user credentials. The
module connects to the control panel via the RS485 encrypted LAN and occupies one module space in the enclosure. Indicators
are provided to show module status at all times.

The module is installed as a keypad/reader device in the system and programming options are configured for the Wiegand reader
via the Keypads & Readers menu. User access events are stored in the panel log and can also be reported if required.

Features

• Supports 26bit - 40bit Wiegand Format
• Separetely Fused Power Input To Reader
• Reader LED And Buzzer Support
• Up To 15 Modules Supported
• Status, Reader And Error Indicators
• High Level Of Lightning / Surge Immunity
• Requires Only A Single Module Space To Install
• Module Tamper Input
• Service Keypad Connection Point
