8/16 Zone Expansion Module

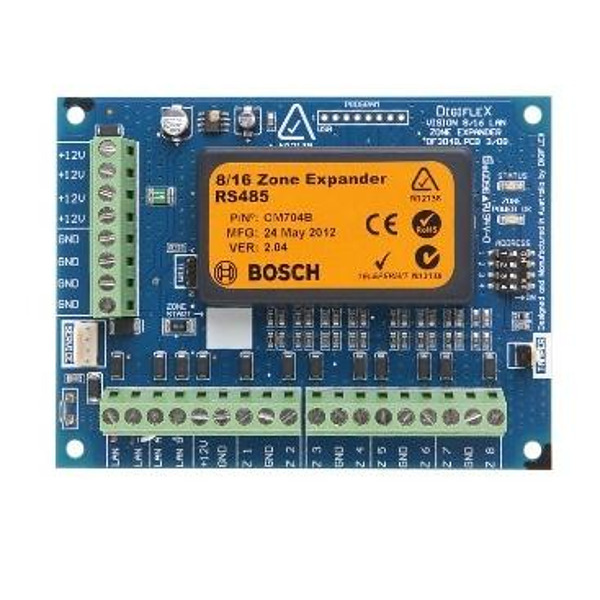

The CM704B zone expansion module allows quick and easy installation of addition physical inputs to the intrusion control panel. Being LAN based the CM704B may be co-located with the intrusion control panel or remotely located.

The CM704B zone expansion module is used to expand the number of zones on the Solution 16i & 6000 Intrusion control panel.

Each CM704B module will provide 8 additional physical zone inputs and allow expansion to either 8 or 16 zones depending on the end of line configuration used.

Features

• LAN or locally powered
• Status and Zone Power LEDs
• Service code pad connection
• Separate tamper input
• Automatic recognition by panel
