External Slimline Keypad for Solution 6000 View larger

External Slimline Keypad for Solution 6000

BOSCH CP156B

New product

External Slimline Keypad for Solution 6000

More details

Security West Pty Ltd Canningvale 9328 1860 www.securitywest.com.au
Access 1 Security Systems Malaga 1300 855 781 www.access1security.com.au
iLink Integrated Systems Harrisdale 0426 267 630
Blue Force Tuart Hill 1300 731 716 www.blueforce.com.au
Bluestar Security & Cabling Ballajura 0423 190 918 www.bluestarservices.com.au
Security Camera Installations WA Girrawheen 0469 067 621

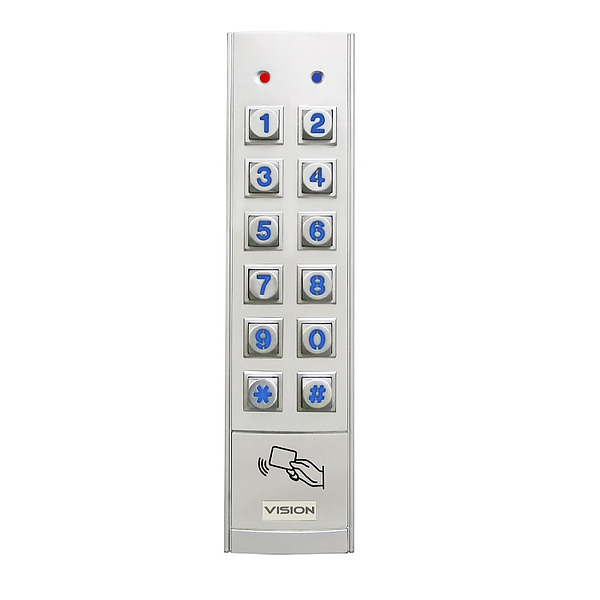

The CP156 keypad provides alarm and or access control functionality when used on Bosch 6000 security control panels. Constructed from satin chrome plated zinc die cast, the CP156 keypad provides a high level of vandal resistance and is also weather resistant to IP67 making it ideal for external installations.

The CP156 includes red and green indicators which are used to show area or door lock status and the 12 buttons with blue backlighting make the keypad easy to operate in all lighting conditions. The CP156 includes an Egress input and a overload protected lock output which can be used to provide a low cost door control solution.

These can be disabled via software control if not being used The unit connects to the alarm control panel via an encrypted RS485 LAN which also includes anti replay and anti substitution technology for even higher security.

User access events are stored in the alarm control panel’s history log and these events can also be reported to the monitoring station or to any other available reporting destination if required. Selected control panels provide support for up to 16 keypads per installation and various options for each can be configured via panel programming.

Features

  • Suitable for Indoor and Outdoor Use
  • Encrypted LAN Communication With Panel
  • Stylish Vandal Resistant Metal Construction
  • Programmable Egress Input
  • Weather Resistant to IP67
  • Programmable Lock Output
  • Durable Satin Chrome Plated Zinc Die-Cast Finish
  • Indicators Show Alarm or Door Status
  • Blue LED Key Backlighting
  • Operates Alarm System, Door Lock or Both
  • LAN Monitored for Anti Replay & Anti Substitution
  • User Access Information Reported and Logged
  • Colour Silver
  • Warranty 3 Years
