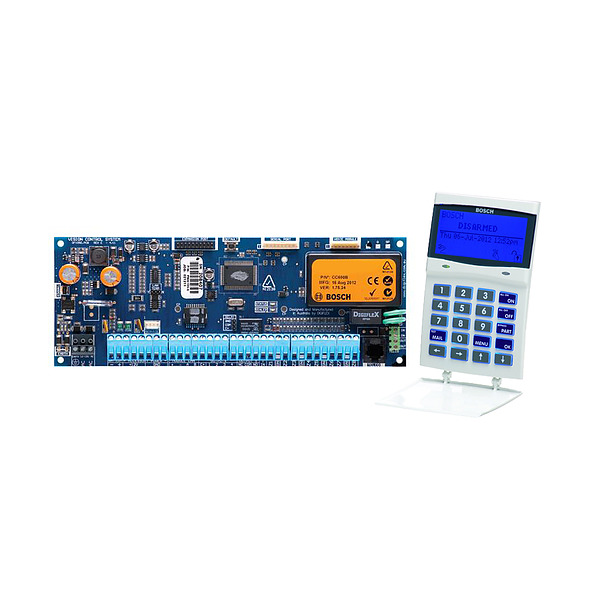

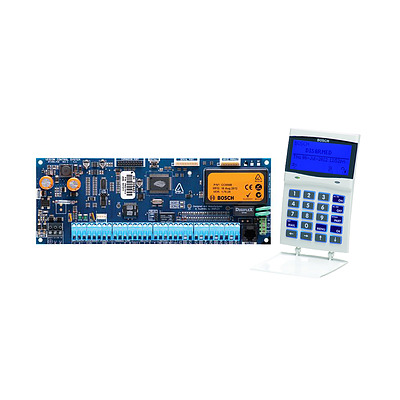

Solution 6000 PCB + CP736B Codepad

Solution 6000 PCB + CP736B Keypad

The Solution 6000 Access and Intrusion alarm panel offers an extensive feature list including integrated proximity, numerous wire free options, high speed windows programming software and the simplest user / installer interface on the market today.

Features

• 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
• Integrated access control for up to 16 doors
• Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
• 5 on-board outputs (expandable to 37)
• GSM/GPRS and Ethernet options

The Solution 6000 NEW 3.5” Colour graphical display with LED backlight Graphic Code Pads with Smartcard have been thoughtfully designed to provide everything you would expect a top-of-the-line security code pad and much more. The Code Pad is supplied in either a black or white plastic housing which is complimented by an electric blue LED backlighting of the keys and display.

The striking appearance will compliment most modern interior designs while also offering advantage in dirty industrial installations. As with all code pads inthe range they can be used with or without the hinged door to meet customer taste or requirements. Illuminated rubber keys allow for easy identification and operation in ambient light conditions and provide a positive feel to the user.

Features

• Built-in Smartcard reader

• Large graphical 3.5" Colour display with LED backlight, with realtime clock and temperature display, adjustable volume, backlight and contrast

• Up to 4 lines of 20 characters and icons, withdedicated ON, OFF and PART keys

• Alphanumeric text prompting / programming withcustom installer static display screen

• Terminal block connections
