> >>GARLAND UTPL5EBL305BW CAT5E UTP LAN CABLE 24AWG 4 PAIR SOLID PVC 305M PULL BOX BLUE

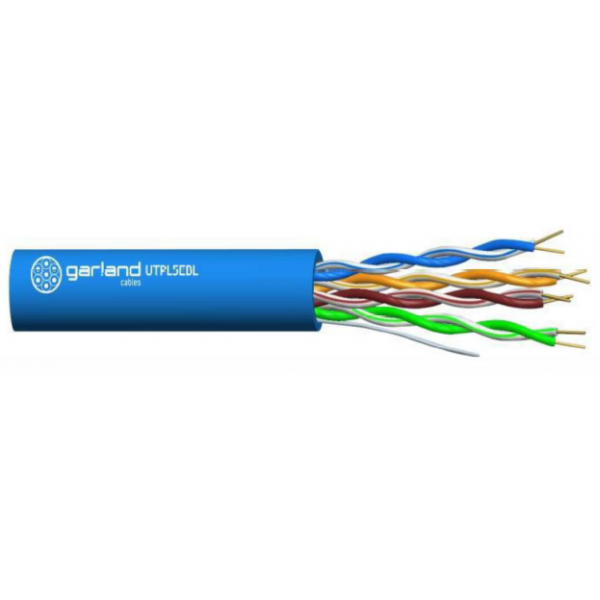

New GARLAND UTPL5EBL305BW CAT5E UTP LAN CABLE 24AWG 4 PAIR SOLID PVC 305M PULL BOX BLUE View larger

GARLAND

GARLAND UTPL5EBL305BW CAT5E UTP LAN CABLE 24AWG 4 PAIR SOLID PVC 305M PULL BOX BLUE

MADUTPL5EBL305BW

UTPL5EBL305BW

New product

MADUTPL5EBL305BW Cat5e UTP LAN Cable 24AWG 4 Pair Solid PVC Blue - 305m Pull Box

The MADUTPL5EBL305BW is a high-quality Category 5e unshielded twisted pair LAN cable designed for structured cabling runs supporting 10Base-T and 100Base-TX Ethernet on Class D links. Measuring 5.3 mm nominal overall diameter, it features solid 24 AWG PACW conductors with PE insulation, a rip cord and a tough PVC jacket to ensure easy pulling, fast jacket stripping and dependable long-term network performance.

Ideal for horizontal cabling to data outlets, IP cameras and building systems, it complies with UL444, ANSI/TIA 568-C.2, ISO/IEC 11801, AS/NZS 3080, AS/CA S-008 and AS 1049 and offers 100 ohm characteristic impedance, a -15°C to 75°C operating range, 111 N recommended max pulling tension and a 54 mm minimum install bend radius, making it suitable for commercial, education and light industrial environments.

Key Features

  • Solid 24 AWG 4 pair UTP Cat5e cable 100 ohm for reliable fast Ethernet networking
  • PE insulated PACW conductors with PVC sheath and rip cord for durability and easy termination
  • Blue outer jacket supplied in a tangle-reducing pull box for clean installation
  • Standards compliance UL444 ANSI/TIA 568-C.2 ISO/IEC 11801 AS/NZS 3080 AS/CA S-008 AS 1049
  • Supplied as a 305 m pull box for structured cabling CCTV and IP devices
  • COLOR BLUE
  • PRODUCT TYPE SECURITY CABLE
