EQL IPC-7100 10/100MBPS ETHERNET OVER COAX CONVERTER PASSIVE UP TO 120M RJ45 BNC FEMALE RG59 75OHM SURGE PROTE
EQLIPC-7100
IPC-7100
New product

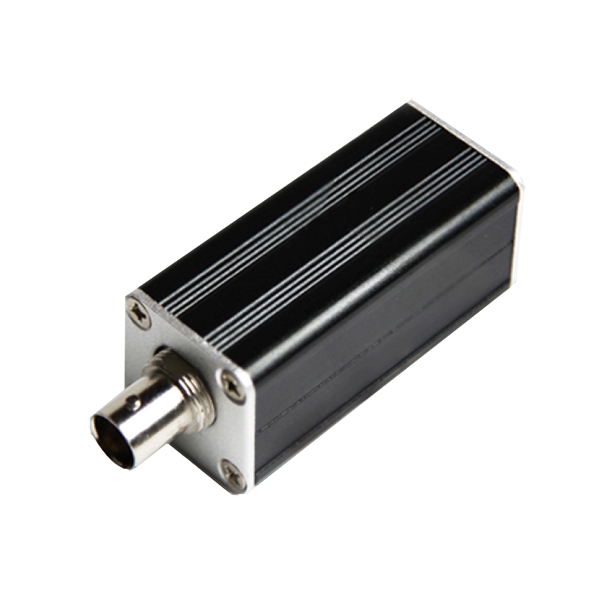

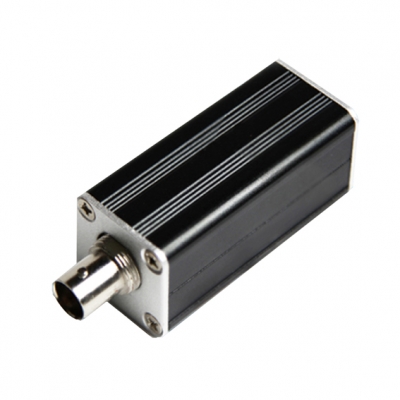

IPC-7100 EQL Ethernet Over Coax Converter 10-100Mbps Single Passive-120m
The IPC-7100 is a high-quality Ethernet over coax converter designed for extending 10/100Base-T IP network connectivity to IP cameras and other network devices over existing RG59 75 ohm coaxial cable. With a transmission distance up to 120 metres, it features an RJ45 Ethernet port and BNC female coax connection in a compact passive design to ensure fast, full-duplex data performance without re-cabling.
Ideal for upgrading legacy coax CCTV runs to IP, it operates as a fully transparent link with no IP or MAC configuration required and includes built-in video/power surge protection for dependable operation in security and commercial installations, making it suitable for retrofit networks where speed, simplicity, and reliability matter.
Key Features
- Full-duplex 10-100Base-T Ethernet over coax for smooth IP camera streaming
- Uses existing 75 ohm coaxial cable RG59 with BNC female connectivity
- Plug-and-play passive unit with no IP address or MAC setup required
- Built-in video and power surge protection for improved site resilience
- Up to 120m point-to-point range when used as a matched IPC-7100 link
- COLOR BLACK
- PRODUCT TYPE CONVERTER
