PLANET IPOE-162S IND HIGH POWER POE SPLITTER 2PORT 10/100/1000BASE-T OP TEMP -40 -~ +75 BLK MTL DIN/ WALL MTD 48-56VDC
PLNIPOE-162S
IPOE-162S
New product

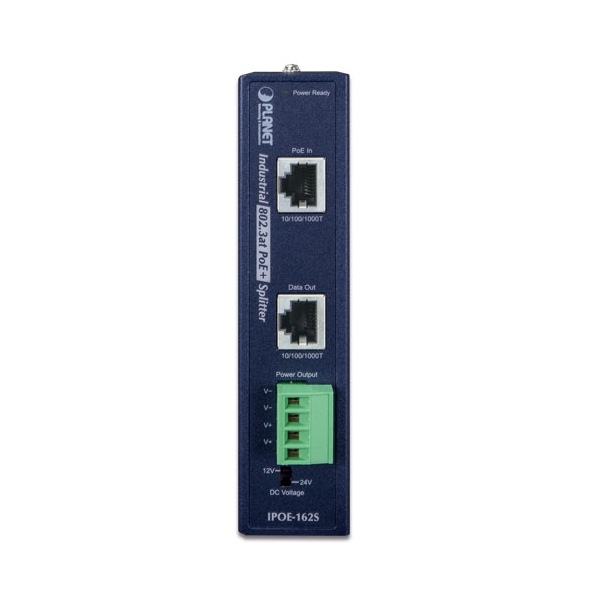

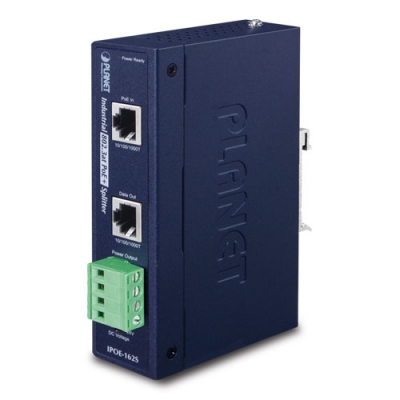

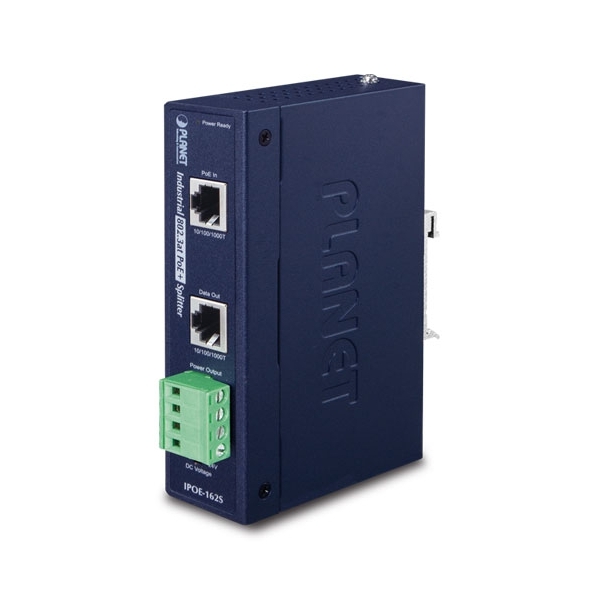

IPOE-162S PLANET Industrial Gigabit High-Power PoE Splitter
The PLANET IPOE-162S is an industrial IEEE 802.3at Gigabit PoE splitter that separates 48-56 V DC power and 10/100/1000Base-T data received through an RJ45 Ethernet connection. It provides one Gigabit data-output port and two DC outputs through a removable four-pin terminal block, with a maximum combined output of 25 W.
A front DIP switch selects 12 V DC at 2 A or 24 V DC at 1 A output. The IP30 metal enclosure supports DIN-rail or wall mounting, operates from -40 °C to 75 °C and provides 6 kV DC EFT power-line and Ethernet ESD protection.
Key Features
- Converts IEEE 802.3at PoE input into Gigabit data and selectable DC power
- Supports compatible non-PoE network devices at distances up to 100 m
- Two DC outputs share up to 25 W of total output power
- Automatic IEEE 802.3at equipment detection
- DIN-rail and wall-mount installation options
- Material Metal
- Operating Temperature -40 to +75
- Warranty 60 Months
- COLOR BLACK
- Brand PLANET
- Unit Dimensions (mm) 32H x 135W x 87.8D
- Weight (kg) 0.421
- Series INDUSTRIAL
- Power 48-56VDC
- Mounting DIN & WALL MOUNT
- Total Port No 2PORT
- Gigabit Port 10/100/1000BASE-T
- Long PoE Label IEEE 802.3at HIGH POWER OVER ETHERNET
