> >PLANET MGB-TLA10 MGB SERIES SIMPLEX SINGLEMODE SFP FIBRE MODULE LC/UPC TX 1310NM RX 1550NM 1000MB/S 10KM
New PLANET MGB-TLA10 MGB SERIES SIMPLEX SINGLEMODE SFP FIBRE MODULE LC/UPC TX 1310NM RX 1550NM 1000MB/S 10KM View larger

PLANET

PLANET MGB-TLA10 MGB SERIES SIMPLEX SINGLEMODE SFP FIBRE MODULE LC/UPC TX 1310NM RX 1550NM 1000MB/S 10KM

PLNMGB-TLA10

MGB-TLA10

New product

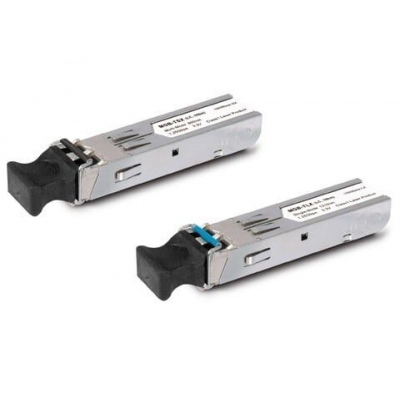

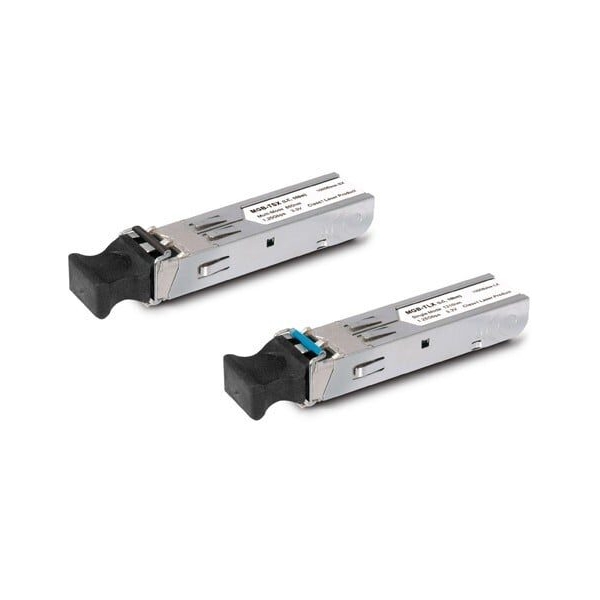

MGB-TLA10 1000BASE-BX Single-Mode Simplex LC/UPC SFP Transceiver - 10 km

The PLANET MGB-TLA10 is an IEEE 802.3z 1000BASE-BX SFP transceiver for 1000 Mbps links over single-mode fibre. It uses a simplex LC/UPC connector and wavelength-division transmission at 1310 nm with reception at 1550 nm, supporting a maximum link distance of 10 km. The module also supports digital diagnostic monitoring.

The MGB-TLA10 is designed for industrial Ethernet connections, with an operating temperature range of -40 to 85°C and compatibility with SFP MSA-compliant ports. Its hot-pluggable design supports installation or replacement without powering down the host switch or media converter. The module supports fibre network extensions in compatible PLANET equipment for demanding industrial environments.

Key Features

  • Transmit and receive signals over a single fibre strand
  • Gigabit Ethernet connectivity over distances up to 10 km
  • Hot-pluggable installation and replacement without powering down the host equipment
  • Digital diagnostic capabilities for optical link monitoring
  • Suitable for standard and wide-temperature industrial settings
  • Warranty 60 Months
  • PRODUCT TYPE SFP FIBRE MODULE
  • Brand PLANET
  • Series MGB SERIES
  • Simplex/Duplex SIMPLEX
  • Single/Multi Mode SINGLEMODE
  • Connector Type LC/UPC
  • Transmit Speed 1310nm
  • Receive Speed 1550nm
  • Network Speed 1000MB/s
  • Distance 10KM
