> >>PLANET IGUP-2205AT INDUSTRIAL 2X SFP 100/1000X TO 2X 10/100/1000T MEDIA CONVERTER 802.3BT POE++ 2X 95W 190W BU
New PLANET IGUP-2205AT INDUSTRIAL 2X SFP 100/1000X TO 2X 10/100/1000T MEDIA CONVERTER 802.3BT POE++ 2X 95W 190W BU View larger

PLANET

PLANET IGUP-2205AT INDUSTRIAL 2X SFP 100/1000X TO 2X 10/100/1000T MEDIA CONVERTER 802.3BT POE++ 2X 95W 190W BU

PLNIGUP-2205AT

IGUP-2205AT

New product

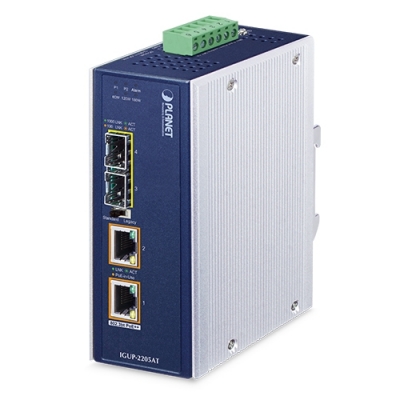

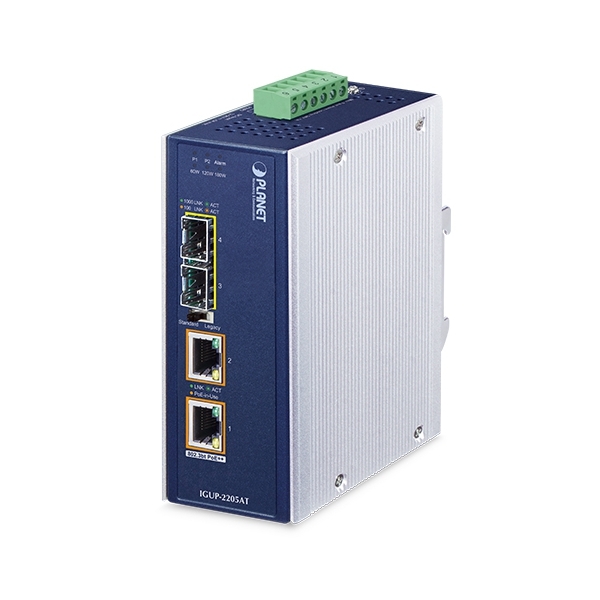

PLNIGUP-2205AT Planet IGUP-2205AT Industrial 2 Port SFP to 2 Port Gigabit Media Converter 802.3bt PoE Plus Plus - 2x95W 190W DIN Rail IP30

The PLNIGUP-2205AT is a high-quality industrial PoE media converter designed for fiber to copper gigabit extension and high power device feeding. Measuring 56 x 87.8 x 135 mm, it features an IP30 metal enclosure and a rugged -40 to 75 C operating range to ensure reliable performance in harsh environments.

Ideal for powering PTZ cameras wireless access points and digital signage, it complies with IEEE 802.3af at bt and FCC CE and offers dual 12 to 56 VDC redundant inputs with power boost to 54 V plus 6KV ESD protection, making it suitable for transportation utilities factories and outdoor cabinets.

Key Features

  • 2 x 10 100 1000BASE T with 802.3bt Type 4 PoE up to 95W per port 190W total for powering demanding PDs
  • IP30 metal chassis DIN rail or wall mount for industrial grade installation
  • 2 x 100 1000BASE X SFP slots for long distance fiber uplink up to 120 km depending on SFP
  • Standards based operation with IEEE 802.3af at bt jumbo frames to 9K and flow control for lossless throughput
  • Remote PoE feeding to 100 m plus end span and mid span pinouts for flexible deployment
  • COLOR BLUE
  • PRODUCT TYPE MEDIA CONVERTER
