> >>EQL POE-IPC-6001-KIT LONG RANGE POE EXTENDER OVER COAX 1CH 600M KIT 1X TRANSMITTER 1X RECEIVER
New EQL POE-IPC-6001-KIT LONG RANGE POE EXTENDER OVER COAX 1CH 600M KIT 1X TRANSMITTER 1X RECEIVER View larger
Previous Next

EQL POE-IPC-6001-KIT LONG RANGE POE EXTENDER OVER COAX 1CH 600M KIT 1X TRANSMITTER 1X RECEIVER

EQLPOE-IPC-6001-KIT

POE-IPC-6001-KIT

New product

POE-IPC-6001-KIT PoE Over Coax Long Range Extender Kit 600m-1TX 1RX

The POE-IPC-6001-KIT is a commercial-grade PoE over coax extender kit designed for upgrading legacy coax CCTV runs to IP camera networking without re-cabling to Cat5e/Cat6. Supporting IEEE 802.3af/at power plus 10/100 Mbps full-duplex Ethernet, it delivers Power and Ethernet up to 600 metres over coax via BNC and presents a standard RJ45 PoE interface for seamless switch-to-camera connectivity.

Ideal for long-distance IP camera deployments in security and surveillance, this compact transmitter-and-receiver set supports one-to-one links up to 600m and can be expanded for one-to-many applications using a BNC splitter placed near the transmitter. Certified to CE FCC and C-Tick and engineered for wide operating temperatures and humid environments, it provides a cost-effective reliable migration path for commercial sites warehouses car parks campuses and industrial installations.

Key Features

  • Extends IEEE 802.3af/at PoE plus Ethernet over coax up to 600m for long-range IP camera links
  • 10/100 Mbps full-duplex data performance with RJ45 PoE interface and BNC power plus data over coax

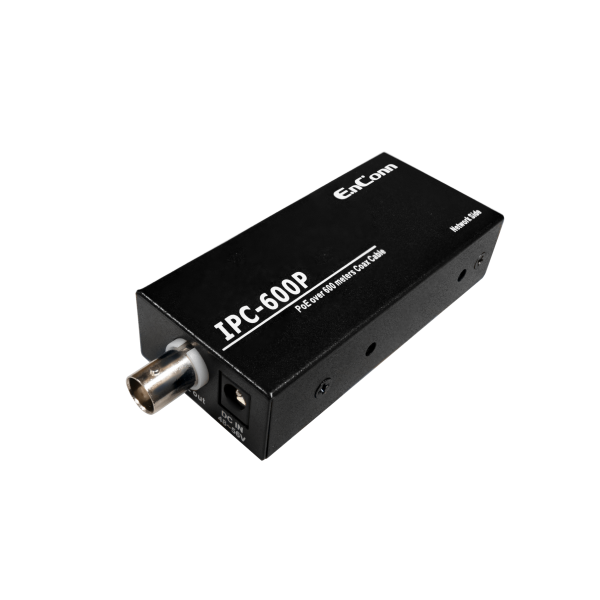

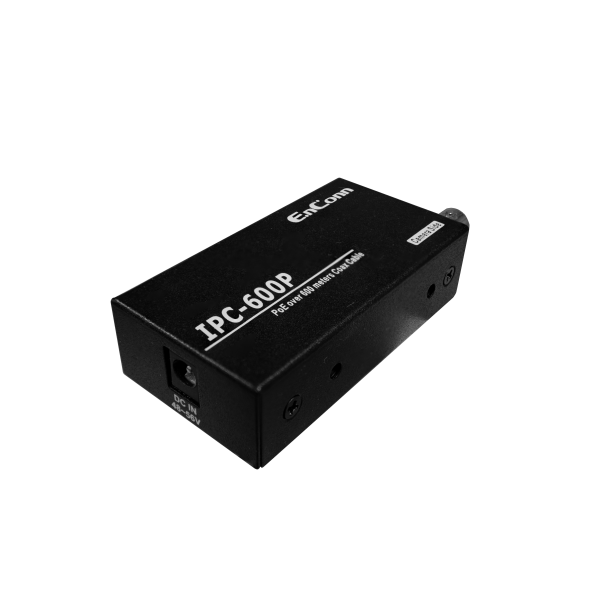

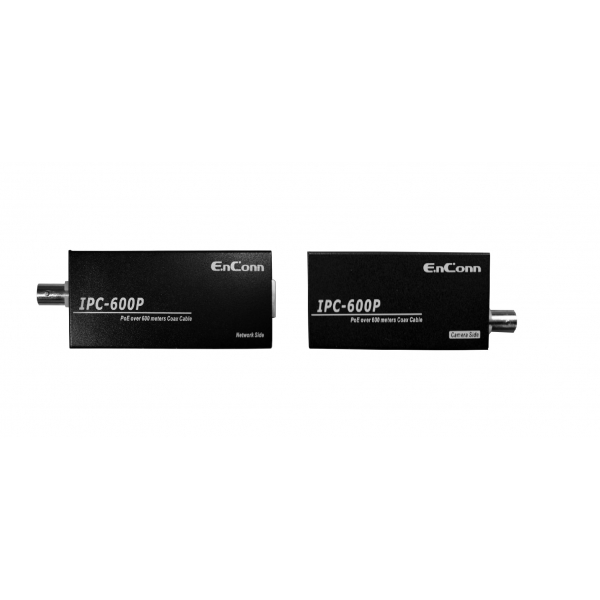

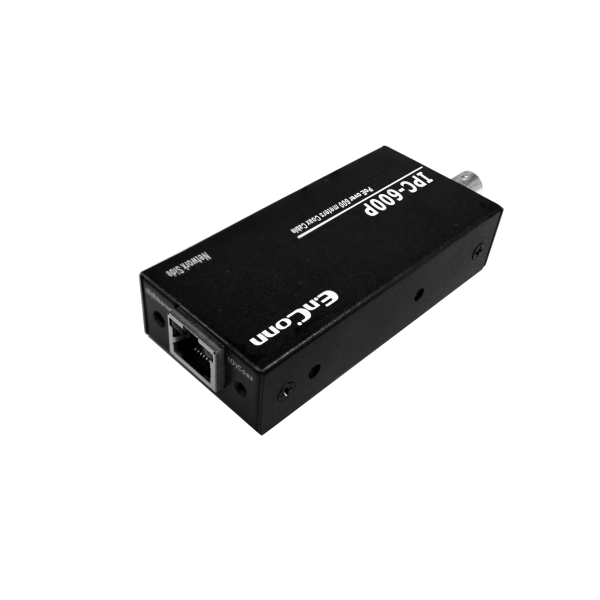

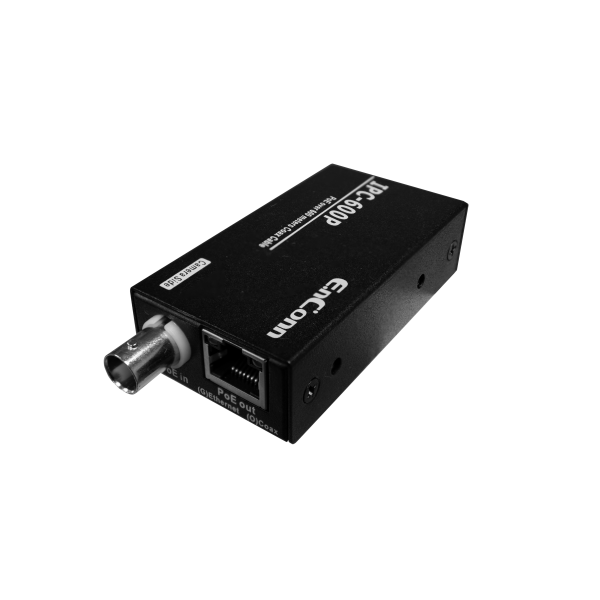

  • Kit includes 1x network-side transmitter and 1x camera-side receiver for rapid retrofit on existing coax
  • Wide operating range with low typical consumption 3W transmitter and 2.6W receiver plus CE FCC C-Tick compliance

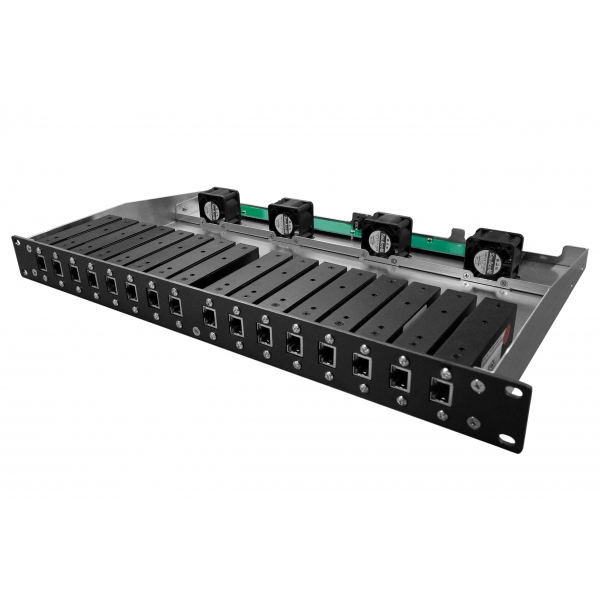

  • Supports one-to-many expansion with BNC splitter and compatible with high-density 19 inch rack mount options
  • COLOR BLACK
  • PRODUCT TYPE POE EXTENDER
