> >>PLANET IPOE-162 INDUSTRIAL 1-PORT MEDIA CONVERTER POE+ INJECTOR 30W 13.3MPPS -40~+75° 12-48VDC
New PLANET IPOE-162 INDUSTRIAL 1-PORT MEDIA CONVERTER POE+ INJECTOR 30W 13.3MPPS -40~+75° 12-48VDC View larger

PLANET

PLANET IPOE-162 INDUSTRIAL 1-PORT MEDIA CONVERTER POE+ INJECTOR 30W 13.3MPPS -40~+75° 12-48VDC

PLNIPOE-162

IPOE-162

New product

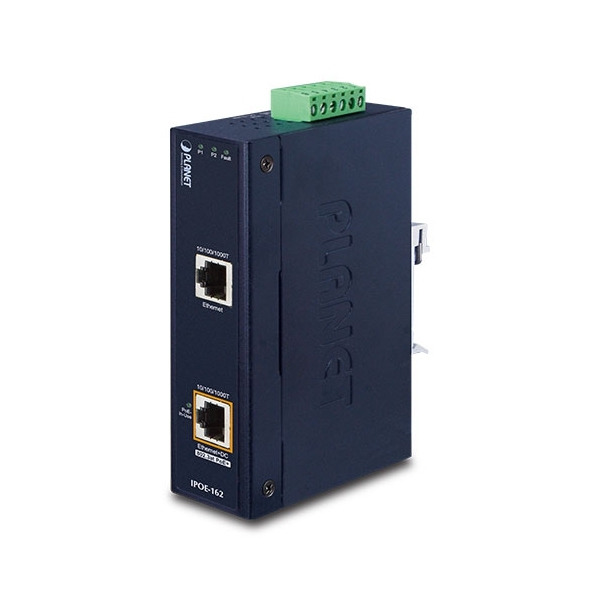

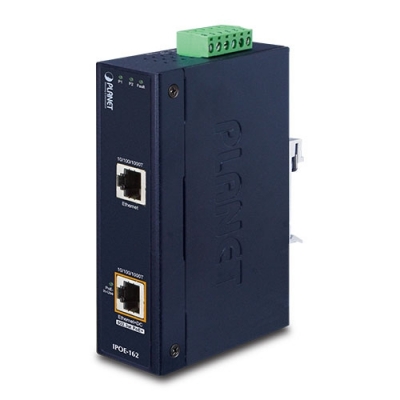

IPOE-162 PLANET Industrial Gigabit PoE+ Injector - 30 W 12 to 48 V DC

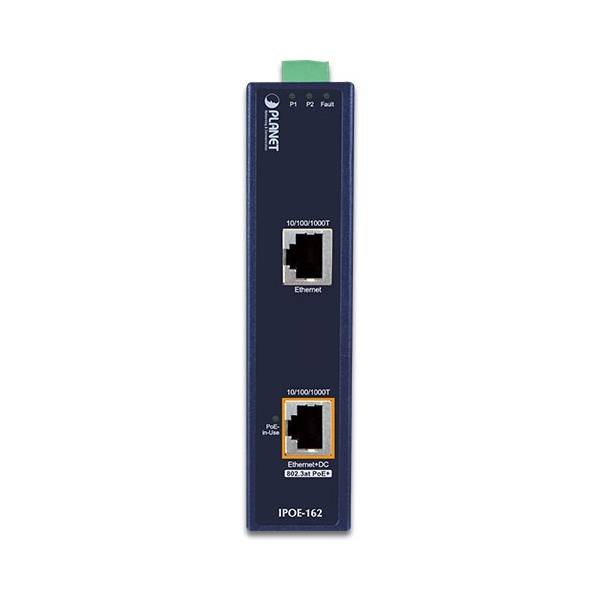

The PLANET IPOE-162 is a single-port industrial Gigabit mid-span PoE+ injector with one RJ45 data input and one RJ45 data-and-power output. It supplies up to 30 W and supports IEEE 802.3at and IEEE 802.3af powered devices.

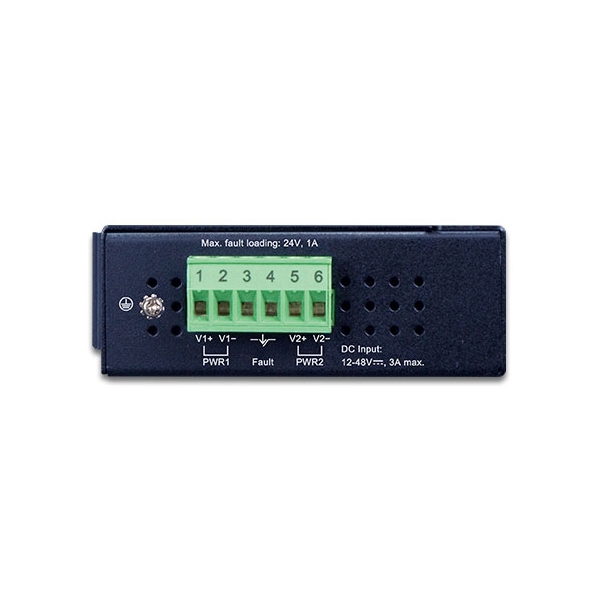

The injector accepts redundant 12 to 48 V DC power input and operates from -40 to 75 °C. It uses an IP30 slim metal enclosure with DIN-rail and wall-mount installation options.

Key Features

  • 10/100/1000 Mbps data rate with 13.3 Mpps throughput
  • Remote PoE power transmission up to 100 m
  • Automatic detection of IEEE 802.3at and IEEE 802.3af devices
  • 6,000 V DC Ethernet ESD protection
  • Power-failure relay output rated at 3 A at 24 V DC
  • Material Metal
  • Operating Temperature -40 to +75
  • COLOR BLUE
  • Brand PLANET
  • Unit Dimensions (mm) 135H x 32W x 87D
  • Weight (kg) 0.489
  • Series INDUSTRIAL
  • Power 12-48VDC
  • Mounting DIN & WALL MOUNT
  • Total Port No 1PORT (2P)
  • Gigabit Port POE INJECTOR
  • Total PoE Budget 30W
  • GT PoE Label PoE+
  • Long PoE Label POWER OVER ETHERNET PLUS
  • Short PoE Label PoE+
  • Forwarding Rate 13.3Mpps
