> >>>ROSSLARE PS-C25TB POWER MANAGEMENT ENCLOSURE WITH SECURE RELAY I/O MODULE 15VDC 4A 2X 14.5VDC 2A OUTPUTS WALL
ROSSLARE PS-C25TB POWER MANAGEMENT ENCLOSURE WITH SECURE RELAY I/O MODULE 15VDC 4A 2X 14.5VDC 2A OUTPUTS WALL View larger

ROSSLARE

ROSSLARE PS-C25TB POWER MANAGEMENT ENCLOSURE WITH SECURE RELAY I/O MODULE 15VDC 4A 2X 14.5VDC 2A OUTPUTS WALL

ROSPS-C25TB-A

PS-C25TB-A

New product

ROSPS-C25TB-A Rosslare PS-C25TB Power Management Enclosure with Secure Relay IO 15VDC 4A 2x 14.5VDC 2A 100-240VAC Black - 228x224x84 mm

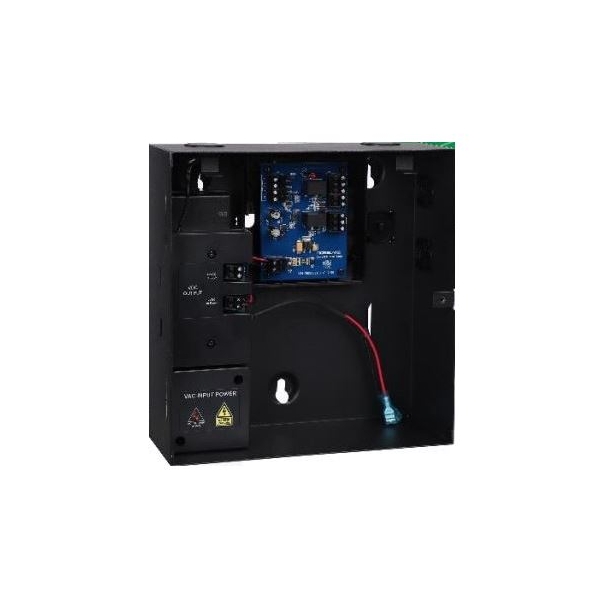

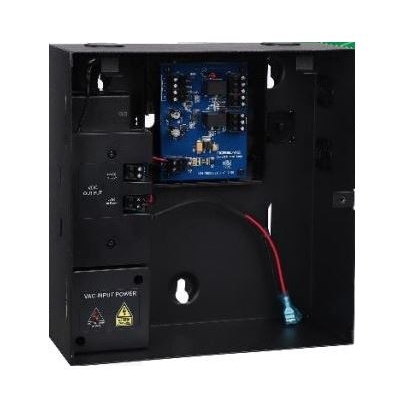

The ROSPS-C25TB-A is a high-quality power management enclosure with a built-in secure relay I/O module designed for professional access control installations using Rosslare AYC convertible readers. Measuring 228 x 224 x 84 mm, it features an integrated 15 VDC 4 A SMPS feeding two isolated 14.5 VDC 2 A channels and a secure Form C relay design to ensure dependable lock control, tamper response, and stable power distribution.

Ideal for converting AYC readers into secure standalone door controllers in commercial, institutional, and enterprise sites, it complies with CE, FCC, and RoHS and offers universal 100–240 VAC input with UPS-style 7 Ah battery backup support for continuous operation, making it suitable for indoor wall-mount security environments.

Key Features

  • 15 VDC 4 A supply with two 14.5 VDC 2 A isolated channels for clean power and lock control
  • Rugged metal enclosure with Rosslare PowerLock C13 retention for secure mains connection
  • MD-25TB secure relay isolates locks, provides REX feedback, built-in 0.25 W speaker and tamper-driven siren
  • CE FCC RoHS compliant with relay UL rating 5 A at 30 VDC or 125 VAC
  • Wall-mount black enclosure supports 7 Ah SLA battery and Rosslare AYC reader compatibility
  • COLOR BLACK
  • PRODUCT TYPE POWER SUPPLY
