> >>>JACK FUSE PP2FR-HC-12 POWER PORT 2X 4A FUSED OUTPUTS FIRE TRIP MODULE 12VDC 8A DIN RAIL

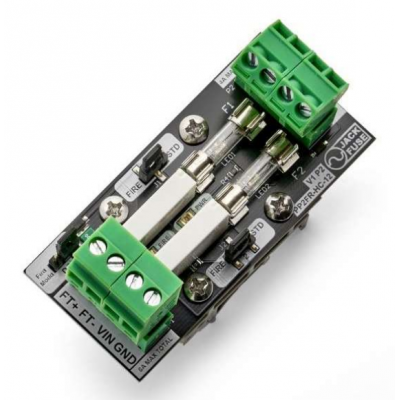

New JACK FUSE PP2FR-HC-12 POWER PORT 2X 4A FUSED OUTPUTS FIRE TRIP MODULE 12VDC 8A DIN RAIL View larger

JACK FUSE

JACK FUSE PP2FR-HC-12 POWER PORT 2X 4A FUSED OUTPUTS FIRE TRIP MODULE 12VDC 8A DIN RAIL

JKFPP2FR-HC-12

PP2FR-HC-12

New product

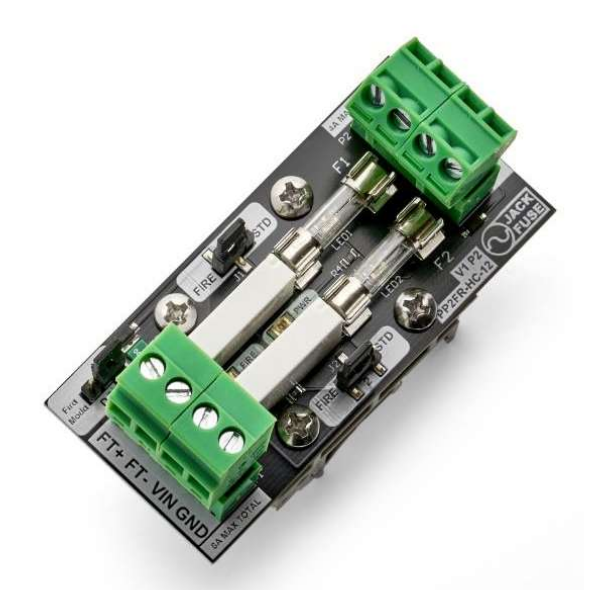

JKFPP2FR-HC-12 Power Port 2FR HC 2x 4A Fused Outputs Fire Trip Module 12VDC DIN Rail - 35x75x51mm

The JKFPP2FR-HC-12 is a high-quality power distribution and fire trip module designed for electronic access control and security systems. Measuring 35 x 75 x 51 mm for DIN rail installation, it features two high-current relays with 4A fast-blow fuses and field-selectable outputs (fire-tripped or standard power) to ensure reliable lock control, robust over-current protection, and streamlined wiring.

Ideal for powering two-door controllers, electromagnetic locks, and system expansions, it supports compliance with AS/CA S0009:2020 fire egress integration and offers clear status LEDs, large 3.5 mm² terminals, and 12VDC ±20% operation, making it suitable for commercial, industrial, and campus installations.

Key Features

  • Two fused outputs rated 4A each 8A max total with field-selectable fire or standard power
  • Glass 4A fast-blow fuses with status LEDs beneath each fuse for instant diagnostics
  • On-board fire trip interface accepts DC voltage or NC dry contact via jumper selection
  • DIN rail mounting with 12VDC ±20% input and 3.5 mm² terminals for high-current runs
  • Compact 35 x 75 x 51 mm footprint ideal for panels and distributed controllers
  • PRODUCT TYPE PCB BOARD
