> >>>JACK FUSE PP8PTC POWER PORT 8X FUSED OUTPUTS PDM FIRE TRIP DPDT AUX RELAY SELF-HEALING FUSES 0–14VDC 8A DIN RAIL

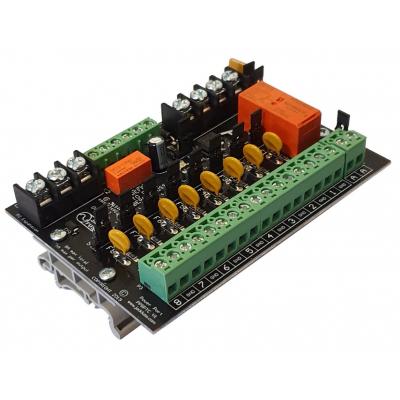

New JACK FUSE PP8PTC POWER PORT 8X FUSED OUTPUTS PDM FIRE TRIP DPDT AUX RELAY SELF-HEALING FUSES 0–14VDC 8A DIN RAIL View larger

JACK FUSE

JACK FUSE PP8PTC POWER PORT 8X FUSED OUTPUTS PDM FIRE TRIP DPDT AUX RELAY SELF-HEALING FUSES 0–14VDC 8A DIN RAIL

JKFPP8PTC

PP8PTC

New product

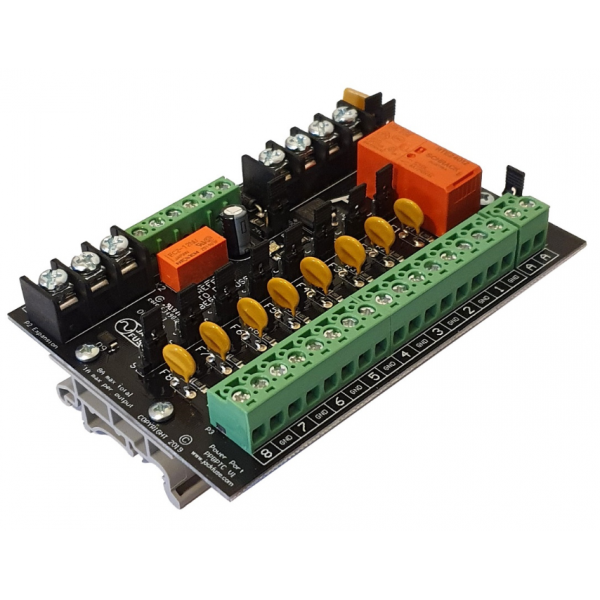

JKFPP8PTC Power Port 8PTC 8x Fused Outputs Fire Trip PDM DPDT Aux Relay Self Healing Fuses 0-14VDC 8A DIN Rail - 110x75x50mm

The JKFPP8PTC is a high-quality power distribution module designed for electronic access control and security systems. Measuring 110 x 75 x 50 mm for DIN rail mounting, it features eight individually fused outputs with self-healing PPTC protection, field-selectable fire power or standard power on each channel, and an auxiliary DPDT relay to ensure dependable lock control, clear diagnostics, and simplified installation.

Ideal for powering electric locks, keypads, detectors, and controllers, it supports compliance with AS/CA S0009:2020 fire egress integration and offers a non-polarised fire trip input (12–28VDC or dry contact), expansion terminals, monitoring output, and per-output status LEDs—making it suitable for commercial, industrial, and campus security deployments.

Key Features

  • 0–14VDC input with 8 fused outputs 1A max constant per output 8A total for reliable distribution
  • Self-healing 2A PPTC fuses with individual status LEDs for fast fault finding
  • Per-channel selection of fire power or standard power plus non-polarised fire trip input 12–28VDC or NC contact
  • Auxiliary DPDT fire-slaved relay and monitoring output with onboard EOL resistor sockets
  • DIN rail form factor 110 x 75 x 50 mm for clean panel builds and easy expansion
  • PRODUCT TYPE POWER DISTRIBUTION BOARD
