> >>9 Port 10/100 Mbps Unmanaged PoE Switch

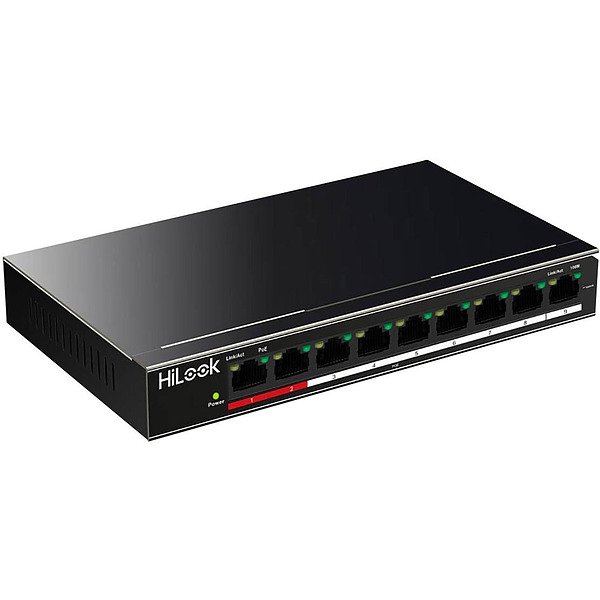

9 Port 10/100 Mbps Unmanaged PoE Switch View larger

9 Port 10/100 Mbps Unmanaged PoE Switch

HILNS-0109P-60

New product

9 Port 10/100 Mbps Unmanaged PoE Switch

More details

MCM Protection Kalgoorlie 08 9091 9555 www.mcmprotection.com.au
RAC Security Services Perth 1300 360 504 www.rac.com.au/home-life/home-security
Blue Force Tuart Hill 1300 731 716 www.blueforce.com.au
CASA Security Malaga 9241 9000 www.casasecurity.com.au

NS-0109P-58 is an 9 10/100Mbps ports unmanaged switch that requires no configuration and provides 9 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs).

In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc.

Features

  • Ports 1 to 8 support IEEE 802.3af/IEEE 802.3at standard.
  • Ports 1-2 of NS-0109P-58 are default high priority ports.
  • When the switch is in EXTEND mode and the data rate is 10 Mbps, ports 1 to 8 support long-distance data transmission up to 250 metres.
  • All ports support 6 kV lightning protection.
  • Supports Auto MDI/MDIX.
  • Supports store and forward.
  • Supports MAC address auto learning and auto aging
  • Supports smart cache optimization.
  • Supports desktop / wall mounting.
  • Colour Black
  • Dimensions (H x W x D) 26 x 177.5 × 104 mm
  • Operating Temperature (0 - 40) °C
  • PoE Ports 9
  • Power Input 51 V DC, 1.25 A
  • Warranty 3 Years
  • Weight 1.77 kg
