> >>GALLAGHER C300490 SMB T30 KEYPAD READER BLE NFC IP68 IK09 BLACK 118Hx86Wx26.7D (MM)
New GALLAGHER C300490 SMB T30 KEYPAD READER BLE NFC IP68 IK09 BLACK 118Hx86Wx26.7D (MM) View larger

GALLAGHER

GALLAGHER C300490 SMB T30 KEYPAD READER BLE NFC IP68 IK09 BLACK 118Hx86Wx26.7D (MM)

GALC300490

C300490

New product

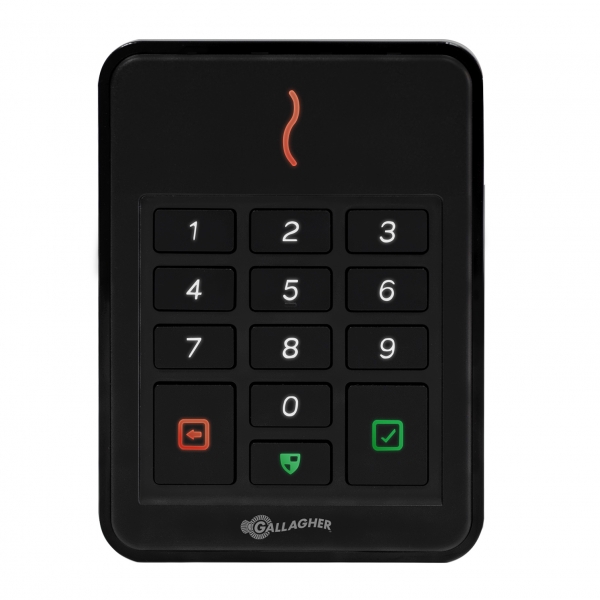

GALC300490 Gallagher SMB T30 Keypad Reader BLE NFC IP68 IK09 Black - 118x86x26.7mm

The GALC300490 is a high-quality keypad and RFID access control reader designed for arming disarming and door access on Gallagher SMB systems. Measuring 118 x 86 x 26.7 mm, it features an IP68 weatherproof IK09 impact-rated enclosure with secure RS485 HBUS communications and encrypted authentication to ensure fast decisions robust durability and tamper-resistant data integrity.

Ideal for commercial entrances perimeter doors and harsh indoor outdoor locations, it complies with FCC CE and RCM approvals and offers app-based Bluetooth and NFC access plus keypad user codes and armed locked state indication, making it suitable for retail offices warehouses and critical infrastructure.

Key Features

  • Up to 60 mm read range with SMB tags and cards plus configurable BLE smartphone access
  • IP68 and IK09-rated housing engineered for long service life in extreme environments
  • Encrypted reader authentication heartbeat monitoring and status LEDs for clear usability
  • 9–16 VDC operation 87 mA idle with HBUS cabling supported up to 500 m
  • Black finish single reader for streamlined SMB door installations
  • COLOR BLACK
  • PRODUCT TYPE KEYPAD & READER
