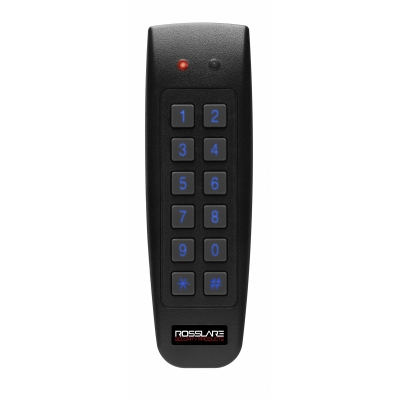

ROSSLARE AYC-G60 PROX MULLION KEYPAD READER WIEGAND HID EM 125KHZ IP65

ROSAYC-G60

AYC-G60

New product

ROSAYC-G60 Rosslare AYC-G60 Prox Mullion Keypad Reader Wiegand HID EM 125KHz IP65 137x44x21mm - Single Unit

The ROSAYC-G60 is a high-quality proximity and PIN keypad reader designed for secure indoor and outdoor access control on narrow mullions. Measuring 137 x 44 x 21 mm, it features an epoxy-potted weather-resistant enclosure with unique backlit piezoelectric keys, dual tri-color LEDs, and an integral sounder to ensure fast reads, clear feedback, and reliable performance in harsh environments.

Ideal for commercial residential and light industrial doors, it complies with IP65 CE RoHS and UL and offers multi-format Wiegand Clock and Data and Wiegand plus PIN outputs with 125 kHz HID Prox and EM card support, making it suitable for new installations or retrofits and capable of 500-user standalone control when paired with Rosslare PS-x5 secured intelligent power supplies.

Key Features

  • 125 kHz HID Prox and EM card reading up to 60 mm with selectable Wiegand 26-bit Clock and Data and Wiegand plus PIN
  • Epoxy-potted weatherized build for dependable outdoor operation from -30°C to 65°C with 0–95% RH
  • Backlit piezo keypad dual tri-color LEDs buzzer and optical tamper for intuitive secure use
  • IP65 rating plus CE RoHS and UL markings with 5–16 VDC operation and 150 m cable distance on 18 AWG
  • Mullion form factor ships as a single unit and converts to a 500-user standalone controller with Rosslare PS-x5 supplies
  • COLOR BLACK
  • PRODUCT TYPE KEYPAD & READER
