> >>ROSSLARE AY-Q12C SLIM PROX READER WIEGAND IP65
New ROSSLARE AY-Q12C SLIM PROX READER WIEGAND IP65 View larger

ROSSLARE

ROSSLARE AY-Q12C SLIM PROX READER WIEGAND IP65

ROSAY-Q12C

AY-Q12C

New product

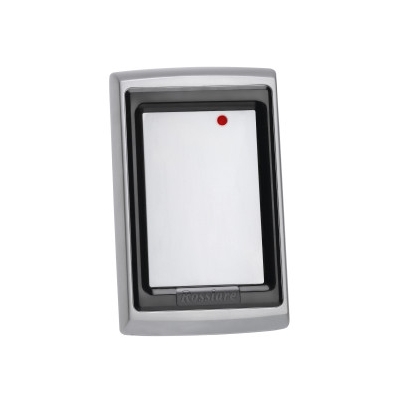

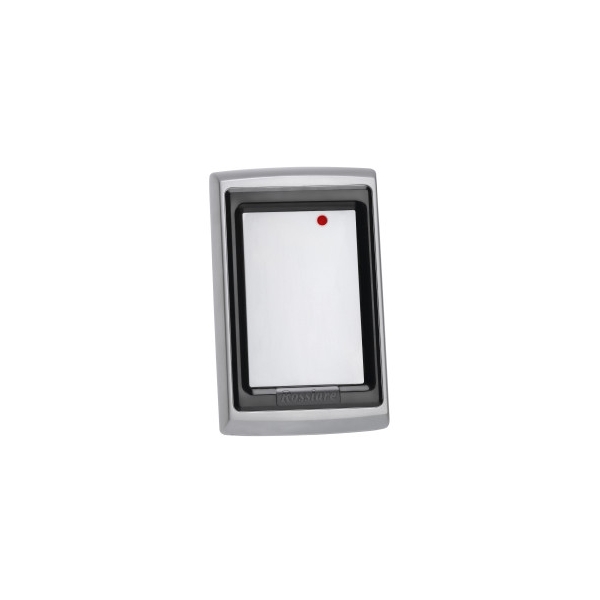

ROSAY-Q12C Rosslare Slim Proximity Reader Wiegand IP65 - 120x76x20mm

The ROSAY-Q12C is a high-quality 125 kHz RFID proximity reader designed for secure access control at doors, gates, and turnstiles. Measuring 120 × 76 × 20 mm, it features a tough UV-resistant polycarbonate enclosure with epoxy potting, hidden-screw mounting, and tri-color LED with built-in sounder to ensure reliable performance and clear user feedback indoors or outdoors.

Ideal for commercial, education, and healthcare facilities, it complies with IP65 weather resistance and RoHS and offers selectable Wiegand 26-bit RS-232 or Clock and Data outputs with 5–16 VDC operation, making it suitable for harsh environments and easy integration with most controllers.

Key Features

  • 125 kHz EM4102 reader with 8–10 cm read range and selectable Wiegand 26 RS-232 or Clock and Data for broad compatibility
  • Rugged UV-resistant polycarbonate body with epoxy potting for long-term durability
  • Tri-color LED internal buzzer optical wall tamper and hold input for intuitive status and enhanced security
  • IP65 water-resistant design operating temperature -31 to 63 C RoHS compliant for dependable outdoor use
  • Includes 45 cm pigtail cable and mounting template for fast professional installation
  • COLOR SILVER
  • PRODUCT TYPE KEYPAD & READER
