> >>ROSSLARE AYC-F60 PROX KEYPAD READER WIEGAND HID EM 125KHZ IP65

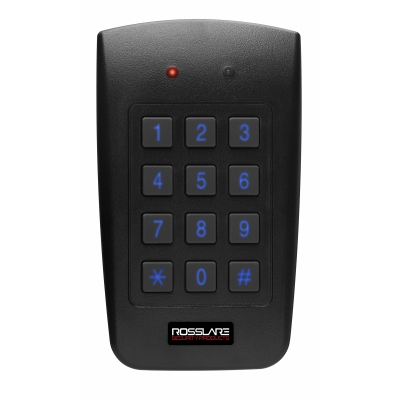

New ROSSLARE AYC-F60 PROX KEYPAD READER WIEGAND HID EM 125KHZ IP65 View larger

ROSSLARE

ROSSLARE AYC-F60 PROX KEYPAD READER WIEGAND HID EM 125KHZ IP65

ROSAYC-F60

AYC-F60

New product

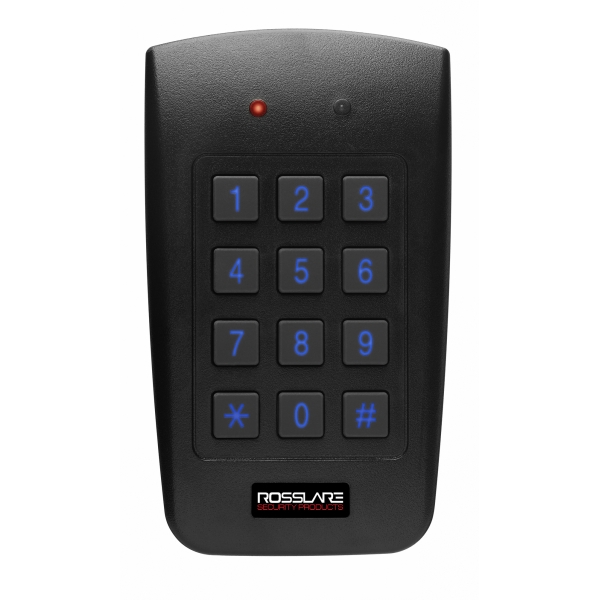

ROSAYC-F60 Rosslare AYC-F60 Backlit Proximity PIN Keypad Reader Controller Wiegand HID EM 125KHz IP65 120x76x21mm - Single Unit

The ROSAYC-F60 is a high-quality PIN and proximity keypad reader designed for secure indoor and outdoor access control. Measuring 120 x 76 x 21 mm, it features an epoxy-potted weather-resistant housing with unique backlit piezoelectric keys, dual tri-color LEDs, and an integral sounder to ensure reliable identification and clear user feedback in harsh environments.

Ideal for commercial residential and light industrial entrances, it complies with IP65 and RoHS and offers selectable Wiegand 26-bit Clock and Data and Wiegand plus PIN outputs for flexible integration, making it suitable for new installations and retrofits using standard controllers or Rosslare secured power supplies for 500-user standalone operation.

Key Features

  • 125 kHz HID Prox and EM card reading up to 60 mm with PIN for secure multi-factor access
  • Epoxy-potted weather-resistant build for dependable outdoor performance from -30°C to 65°C
  • Backlit piezo keypad with dual tri-color LEDs and buzzer for high-visibility, intuitive operation
  • Standards-aligned IP65 and RoHS compliance with 5–16 VDC operation and optical tamper detection
  • Works as reader or 500-user standalone controller when paired with Rosslare PS-x25T family
  • COLOR BLACK
  • PRODUCT TYPE KEYPAD & READER
