> >>BOSCH PR116B SOL 6000 HARDWIRED PROX READER SLIM/ MULLION SMARTCARD WHITE 1 x N/C OUTPUT (PWD) 1 INPUT (DRY) W
New BOSCH PR116B SOL 6000 HARDWIRED PROX READER SLIM/ MULLION SMARTCARD WHITE 1 x N/C OUTPUT (PWD) 1 INPUT (DRY) W View larger

BOSCH

BOSCH PR116B SOL 6000 HARDWIRED PROX READER SLIM/ MULLION SMARTCARD WHITE 1 x N/C OUTPUT (PWD) 1 INPUT (DRY) W

BOSPR116B

PR116B

New product

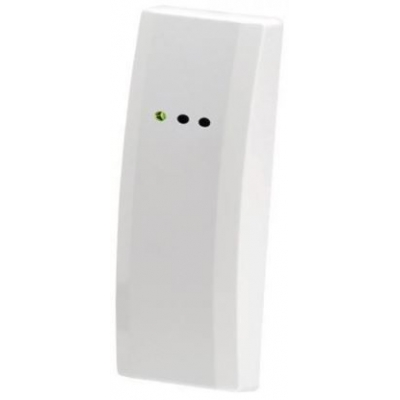

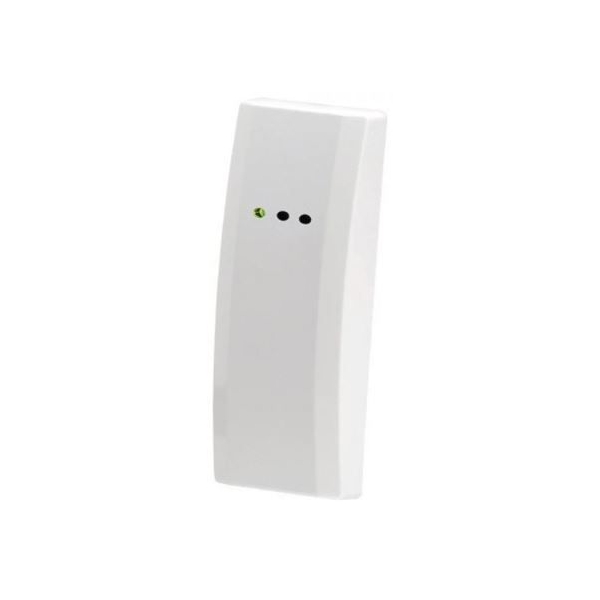

PR116B Bosch Solution External Smart Card LAN Reader White Slim Mullion - 44x21x114mm - 1 Pack

The PR116B is a high-quality weatherproof smart card LAN proximity reader designed for secure alarm arming and door access control on compatible Bosch Solution panels. Measuring 44 x 21 x 114 mm, it features UV stabilised ASA plastic construction and a slim mullion profile to deliver high vandal resistance and reliable outdoor performance to IP66.

Ideal for external doors, gates, and perimeter entry points, it uses encrypted two-way authentication over an RS485 encrypted LAN and provides clear status feedback via red green and blue LEDs plus an onboard sounder. It supports 10.0 to 14.5 VDC power and includes one lock control output (protected open collector 500 mA for relay-driven locking) plus one low-to-trigger egress dry-contact input, making it a dependable choice for commercial and residential access control environments.

Key Features

  • Smart Card MiFare 40bit proprietary format at 10.3 MHz for secure credential reading
  • IP66 weather resistant and UV stabilised ASA housing for outdoor mullion mounting
  • Encrypted RS485 LAN connection for secure two way authentication to the control panel
  • Lock output protected open collector 500 mA and low to trigger egress input for simple door control wiring
  • Multi colour LED indicators and reader sounder for clear door and area status feedback
  • COLOR WHITE
  • PRODUCT TYPE PROX READER
