> >>BOSCH CP155BBK WEATHER RESISTANT KEYPAD WITH PROX IP65 10-14.5VDC BLACK 129HX83WX30D (MM)
New BOSCH CP155BBK WEATHER RESISTANT KEYPAD WITH PROX IP65 10-14.5VDC BLACK 129HX83WX30D (MM) View larger

BOSCH

BOSCH CP155BBK WEATHER RESISTANT KEYPAD WITH PROX IP65 10-14.5VDC BLACK 129HX83WX30D (MM)

BOSCP155BBK

CP155BBK F.01U.344.559

New product

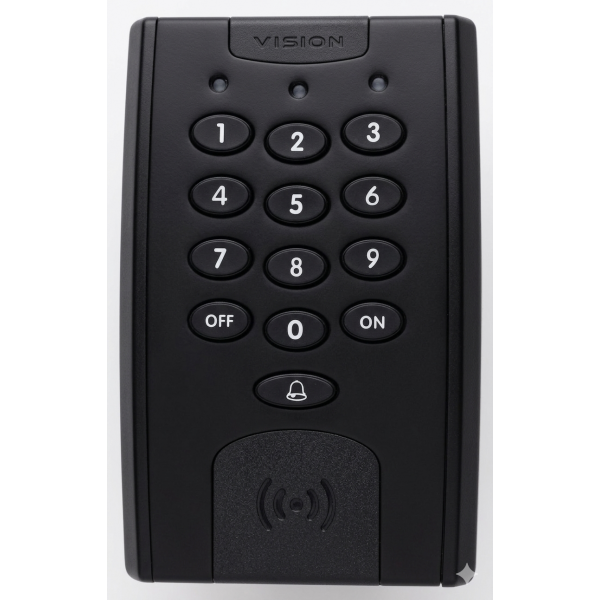

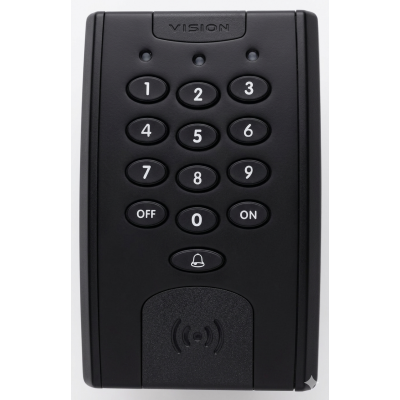

BOSCH CP155BBK Weather Resistant Keypad With Prox-IP65 Black

The CP155BBK is a Bosch weather resistant keypad with integrated smart prox reader designed for reliable outdoor arming, disarming, and door access control on compatible Bosch Solution security systems. Measuring 129 x 83 x 30 mm and powered by 10.0 to 14.5 VDC, it features a durable high strength UV resistant housing with IP65 environmental protection, making it ideal for exposed entry points, gates, and external doorways.

Ideal for commercial and residential access control and alarm system operation, it connects via an encrypted RS485 LAN and provides clear status feedback using red green and blue indicators plus backlit keys for easy operation day or night. It also includes front and rear tamper protection, an onboard Form 1C lock relay output rated 24 VDC at 2A with a 5 second operation time, and a low to trigger egress input, delivering a secure all in one keypad and proximity solution for demanding outdoor installations.

Key Features

  • Weather resistant keypad with built in smart prox reader for alarm and door access control
  • IP65 UV resistant high strength housing for outdoor entry points and harsh environments
  • 10.0 to 14.5 VDC operation up to 100 mA with encrypted RS485 LAN connection
  • Red green blue status LEDs plus backlit buttons and front and rear tamper protection
  • Form 1C lock relay 24 VDC 2A and low to trigger egress input in 129 x 83 x 30 mm black unit
  • COLOR BLACK
  • PRODUCT TYPE KEYPAD & READER
