> >>SMART CP-32WBZ-LB RESETTABLE EMERGENCY DOOR RELEASE BREAK GLASS LED & BUZZER 1X DPDT 12/24VDC 91Hx87Wx53D (MM)
New SMART CP-32WBZ-LB RESETTABLE EMERGENCY DOOR RELEASE BREAK GLASS LED & BUZZER 1X DPDT 12/24VDC 91Hx87Wx53D (MM) View larger

SMART

SMART CP-32WBZ-LB RESETTABLE EMERGENCY DOOR RELEASE BREAK GLASS LED & BUZZER 1X DPDT 12/24VDC 91Hx87Wx53D (MM)

GIACP-32WBZ-LB

CP-32WBZ-LB

New product

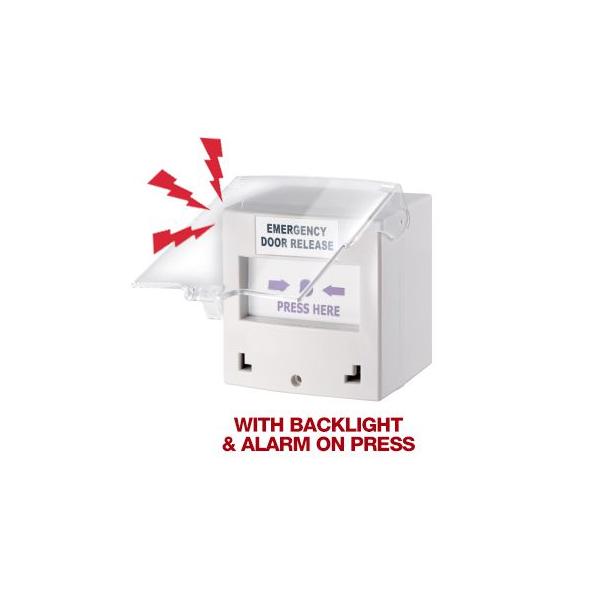

GIACP-32WBZ-LB Resettable Emergency Door Release Call Point White 12-24VDC DPDT 91x87x53mm - Single

The GIACP-32WBZ-LB is a high-quality resettable emergency door release call point designed for rapid egress control and clear status indication in access control systems. Measuring 91 x 87 x 53 mm, it features a durable white surface-mount housing with a blue LED backlight and a built in 80 dB buzzer to ensure visibility audible alerting and simple maintenance using the included reset key.

Ideal for schools retail and commercial buildings, it complies with CE and RoHS and offers DPDT changeover contacts rated 5 A at 125/250 VAC with universal 12/24 VDC supply default 24 VDC making it easy to integrate with door controllers and alarm inputs in indoor non fire rated environments.

Key Features

  • 12/24 VDC supply with DPDT 5 A 125/250 VAC contacts for dependable control and monitoring
  • Durable plastic enclosure in white for long service life and clean aesthetics
  • Blue LED backlight and built in 80 dB buzzer for nighttime visibility and event notification
  • CE and RoHS compliant resettable element eliminates glass shards and speeds return to service
  • Surface mounted 91x87x53 mm form factor supplied as a single unit with reset key
  • COLOR WHITE
  • PRODUCT TYPE BREAK GLASS
