> >>SMART CP-32GBZ-LB-ALM RESETTABLE EMERGENCY DOOR RELEASE CALL POINT LED BUZZER ALARM COVER 12/24VDC 91Hx87Wx53D
New SMART CP-32GBZ-LB-ALM RESETTABLE EMERGENCY DOOR RELEASE CALL POINT LED BUZZER ALARM COVER 12/24VDC 91Hx87Wx53D View larger

SMART

SMART CP-32GBZ-LB-ALM RESETTABLE EMERGENCY DOOR RELEASE CALL POINT LED BUZZER ALARM COVER 12/24VDC 91Hx87Wx53D

GIACP-32GBZ-LB-ALM

CP-32GBZ-LB-ALM

New product

GIACP-32GBZ-LB-ALM Resettable Emergency Door Release Call Point Green 12-24VDC DPDT 91x87x53mm - Single

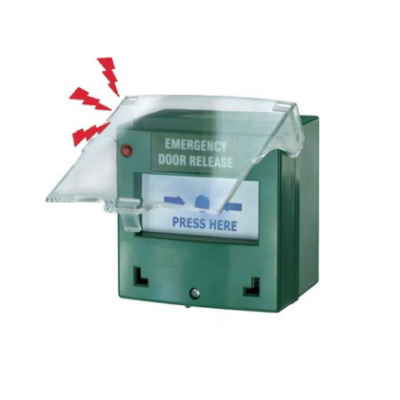

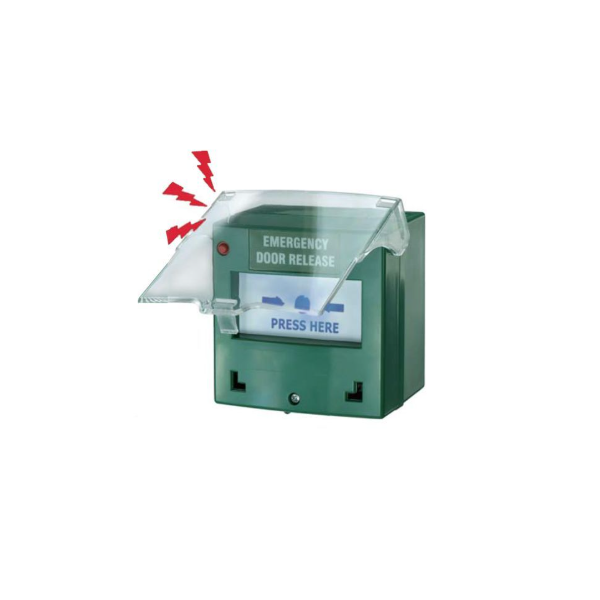

The GIACP-32GBZ-LB-ALM is a high-quality resettable emergency door release call point designed for rapid egress control and clear user guidance in access control systems. Measuring 91 x 87 x 53 mm, it features a durable green housing with a clear protective alarm cover, blue LED backlight, and built-in 80 dB buzzer to ensure visibility, tamper deterrence, and immediate audible warning.

Ideal for schools retail and commercial buildings, it complies with CE and RoHS and offers double-pole changeover DPDT contacts rated 5 A at 125/250 VAC with 12/24 VDC operation and an included reset key, making it suitable for indoor non fire-rated environments and straightforward integration with door controllers.

Key Features

  • 12/24 VDC supply with DPDT changeover contacts 5 A 125/250 VAC for reliable interface to access control and alarms
  • Robust plastic body and clear alarm cover for durability and vandal resistance
  • Blue backlight and 80 dB buzzer that activates on cover lift for high visibility and misuse warning
  • CE compliant patented resettable element eliminates dangerous glass shards and speeds return to service
  • Compact 91x87x53 mm surface mount design supplied with reset key for single-point installation
  • COLOR GREEN
  • PRODUCT TYPE BREAK GLASS
