> >>DFM DWS210GN RESETTABLE EMERGENCY DOOR RELEASE BREAK GLASS PLASTIC INSERT IP66 2X SPDT CONTACTS SURFACE MOUNTE
New DFM DWS210GN RESETTABLE EMERGENCY DOOR RELEASE BREAK GLASS PLASTIC INSERT IP66 2X SPDT CONTACTS SURFACE MOUNTE View larger

DFM

DFM DWS210GN RESETTABLE EMERGENCY DOOR RELEASE BREAK GLASS PLASTIC INSERT IP66 2X SPDT CONTACTS SURFACE MOUNTE

DFMDWS210GN

DWS210GN

New product

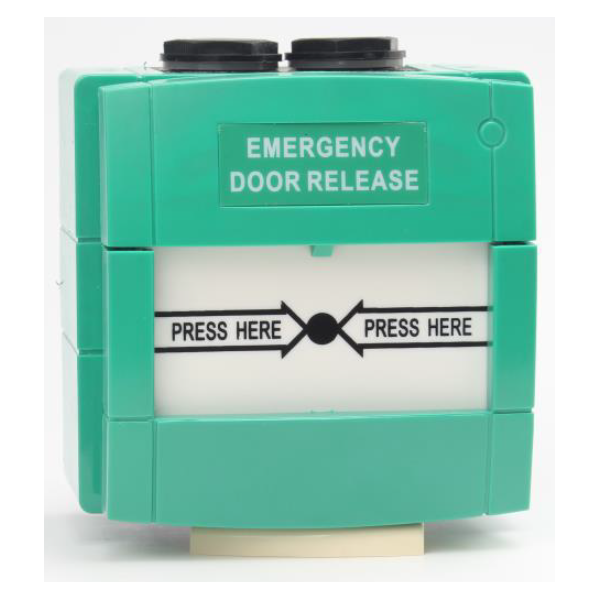

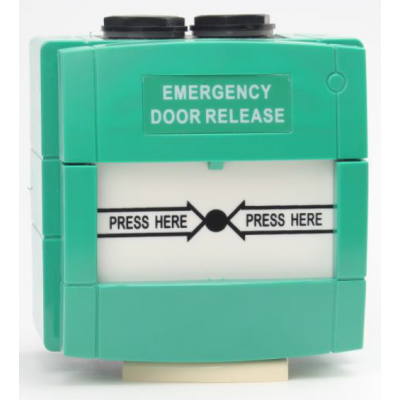

DFMDWS210GN Resettable Emergency Door Release Break Glass IP66 Green 97.5Hx93Wx70.5D mm - Surface Mount

The DFMDWS210GN is a high-quality emergency door release designed for access control and alarm override. Measuring 97.5H x 93W x 70.5D mm, it features a resettable plastic insert and dual SPDT contacts to ensure rapid egress control, reliable signaling, and easy system integration.

Ideal for indoor or outdoor installations, it complies with IP66 ingress protection and offers key-reset usability with straightforward surface-mounted fitting, making it suitable for commercial, industrial, and public buildings.

Key Features

  • 2 x SPDT 30VDC 2A contacts for dependable circuit interruption and monitoring
  • Rugged weather-sealed housing for long service life in harsh environments
  • Resettable plastic insert with quick key reset to reduce downtime and maintenance
  • IP66 rating and low contact resistance ≤50mΩ for consistent performance
  • Surface-mounted green unit 97.5H x 93W x 70.5D mm for clear emergency identification
  • COLOR GREEN
  • PRODUCT TYPE DOOR RELEASE
