> >>SMART CP-32GBZ-LB RESETTABLE EMERGENCY DOOR RELEASE CALL POINT LED BUZZER 1X DPDT 12/24VDC 91Hx87Wx53D (MM) GR
New SMART CP-32GBZ-LB RESETTABLE EMERGENCY DOOR RELEASE CALL POINT LED BUZZER 1X DPDT 12/24VDC 91Hx87Wx53D (MM) GR View larger

SMART

SMART CP-32GBZ-LB RESETTABLE EMERGENCY DOOR RELEASE CALL POINT LED BUZZER 1X DPDT 12/24VDC 91Hx87Wx53D (MM) GR

GIACP-32GBZ-LB

CP-32GBZ-LB

New product

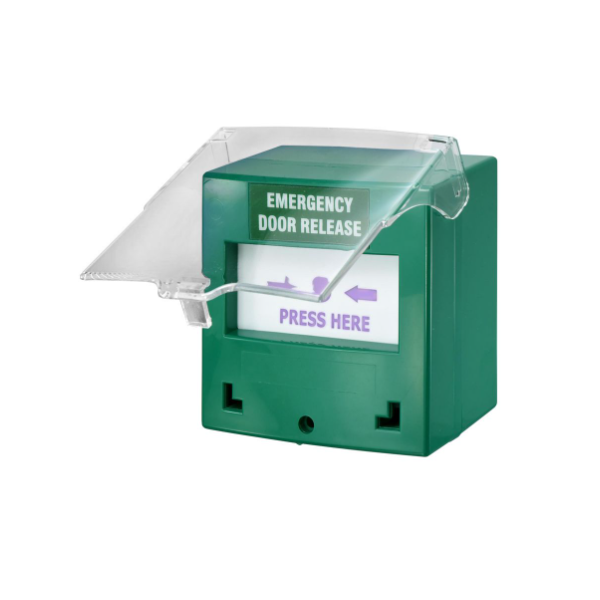

GIACP-32GBZ-LB Resettable Emergency Door Release Call Point Green 12-24VDC DPDT 91x87x53mm - Single

The GIACP-32GBZ-LB is a high-quality resettable emergency door release call point designed for access control egress points. Measuring 91 x 87 x 53 mm, it features a durable green enclosure with a patented resettable element blue LED backlight and a built in 80 dB buzzer to ensure clear visibility tamper deterrence and fast safe operation without glass shards.

Ideal for schools retail and commercial buildings, it complies with CE and RoHS and offers double pole changeover contacts rated 5 A at 125/250 VAC with universal 12/24 VDC supply default 24 VDC making it easy to integrate with door controllers and alarm systems using the included reset key.

Key Features

  • 12/24 VDC supply DPDT contacts 5 A 125/250 VAC for reliable interface with access control and alarms
  • Robust green housing with resettable element for long service life and no broken glass
  • Blue backlight and built in 80 dB buzzer for high visibility and event notification
  • CE and RoHS compliant compact 91x87x53 mm form factor
  • Supplied as a single call point with reset key for indoor egress stations
  • COLOR GREEN
  • PRODUCT TYPE BREAK GLASS
