FSH FEL990M ELECTRIC MORTICE LOCK MONITORED FAIL SAFE/FAIL SECURE 60MM BACKSET 12/24VDC SILVER
FEL990M FSH Monitored Electric Mortice Lock - 60 mm Backset

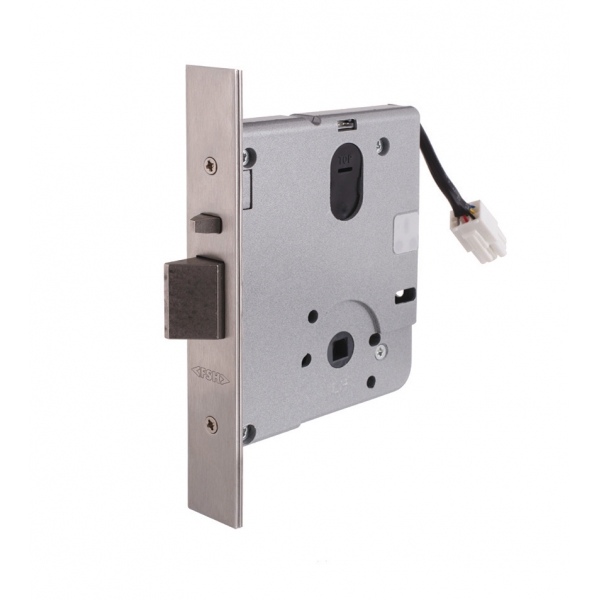

The FSH FEL990M is a monitored electric mortice lock with a standard 60 mm backset and satin stainless steel finish. It operates on 12-24 V DC and can be adjusted on site for fail-safe or fail-secure operation.
Monitoring covers door position, lock status, dual key override and request-to-exit operation, with LED indication. The lock has been tested for up to four hours on fire-door assemblies.
Key Features
- Field-selectable vestibule or combination locking configuration
- Left-hand or right-hand operation can be configured during installation
- Reverse-polarity protection safeguards the electrical connection
- Suitable for door thicknesses from 32 mm to 50 mm
- Operating temperature range extends from -20°C to +60°C
- Colour STAINLESS STEEL
- Warranty 60 Months
- COLOR SILVER
- PRODUCT TYPE ELECTRIC STRIKE
- Brand FSH
- Unit Dimensions (mm) 175H x 100W x 20D
- Series FEL990 SERIES
- Power 12 to 24VDC
- Mounting MORTISE MOUNT
- Device Type MORTICE LOCK
- Elec/Mech ELECTRIC
- Backset/Lip 60MM BACKSET
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- PTO/PTL FAIL SAFE / FAIL SECURE ADJUSTABLE ON SITE
- Fire Rating 4 HOUR FIRE RATING
- LED Indicator YES
- Key Override YES
