ASSA ABLOY 3782ELSS SELECTOR SERIES ELECTRIC MORTICE LOCK 23MM BACKSET STAINLESS STEEL MONITORED LOCK STATUS SENSOR DOOR STATUS
ASA3782ELSS
3782ELSS
New product

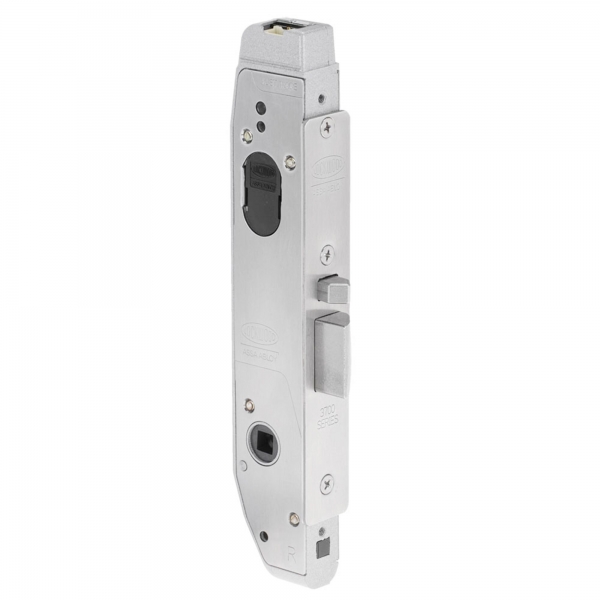

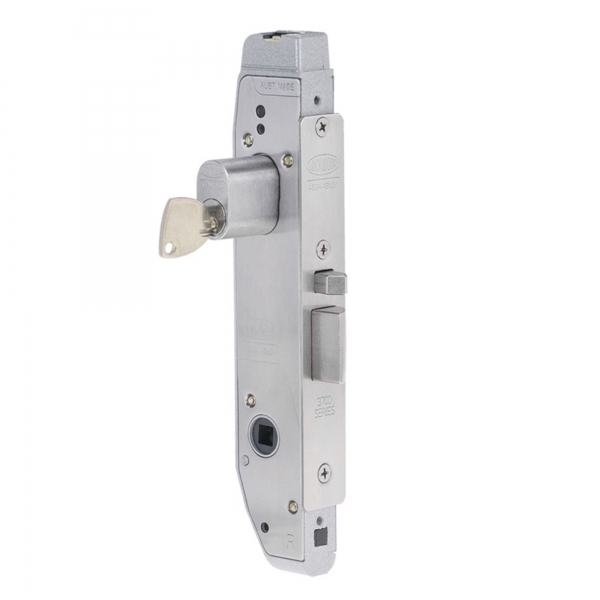

3782ELSS Selector Series Monitored Electric Mortice Lock - 23 mm Satin Stainless Steel
The ASSA ABLOY Lockwood 3782ELSS is a motor-driven Selector Series electric mortice primary lock with a 23 mm backset for narrow-stile hinged doors. It operates from 9-28 V DC and is field-selectable for Power to Lock or Power to Open operation.
Designed for commercial access-control and single-action escape-door applications, the lock works with intercoms, keypads and key switches while retaining mechanical key override. Its zinc alloy case, stainless steel chassis and faceplate, and 15 mm stainless steel latch bolt provide a robust mortice-mounted locking assembly.
Key Features
- Independent outputs provide detailed monitoring of lock status door position deadlatch key override and request-to-exit activity
- Onboard status LEDs can illuminate compatible door furniture without separate furniture wiring
- Three-wire control separates supply power from the locking signal to improve reliability over longer cable runs
- Motor-driven operation limits continuous power demand after each locking movement
- Field-configurable handing and hub selection simplify adaptation to the required door arrangement
- Colour STAINLESS STEEL
- Warranty 60 Months
- COLOR STAINLESS STEEL
- PRODUCT TYPE DOOR LOCK
- Brand ASSA ABLOY
- Unit Dimensions (mm) 215H x 38W x 40D
- Series SELECTOR SERIES
- Power 9-28VDC
- Mounting MORTISE MOUNT
- Device Type MORTICE LOCK
- Elec/Mech ELECTRIC
- Backset/Lip 23MM BACKSET
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- PTO/PTL POWER TO LOCK/POWER TO OPEN - FIELD SELECTABLE
- LED Indicator YES
- Key Override YES
