FSH FEL990 SERIES ELECTRIC MORTICE LOCK 60MM BACKSET STAINLESS STEEL KEY OVERRIDE FAIL SAFE / FAIL SECURE ADJUSTABLE ON SITE
FSHFEL990
FEL990
New product

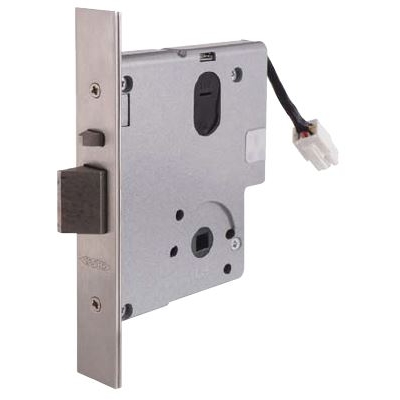

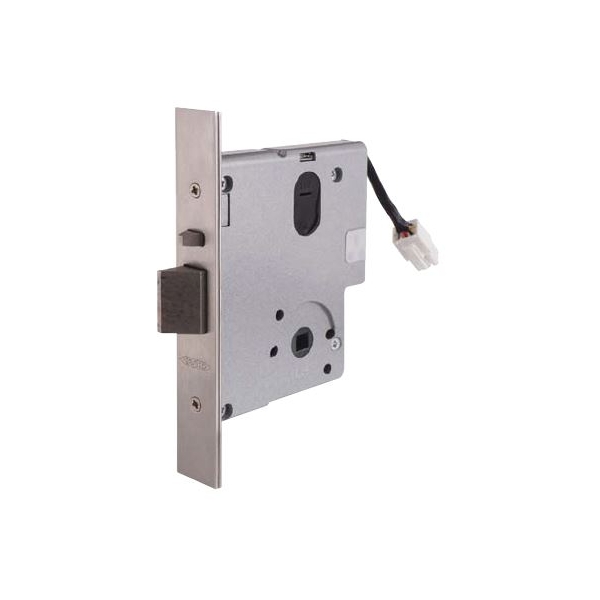

FSH FEL990 ELECTRIC MORTICE LOCK FAIL SAFE/FAIL SECURE 60MM BACKSET 12/24VDC SILVER
FEL990 Electric Mortice Lock - 60 mm Backset 12-24 V DC Silver Finish
The FEL990 is a non-monitored electric mortice lock with a 60 mm backset, 12-24 V DC operation and silver finish. Designed as a multi-functional locking device, it allows the operating mode, locking function and handing to be configured on site to suit the door application.
Suitable for doors 32-50 mm thick, the lock is supplied with a 3 m cable and 12-pin plug for electrical connection. It has been tested to four hours on fire door assemblies as specified in AS/NZS 1905.1-1997 Part 1 and conforms to S3 Security and D3 Durability under AS 4145.2:1993 when used with an equivalent S3 keying system.
Key Features
- On-site fail-safe or fail-secure selection allows one lock to serve either power-to-lock or power-to-open requirements
- Field-selectable vestibule or combination configuration accommodates single- or double-sided locking
- Left- or right-hand adjustment simplifies setup for different door orientations
- Reverse-polarity protection adds wiring protection during electrical installation
- A -20 to +60 °C operating range supports use across varied ambient conditions
- Colour STAINLESS STEEL
- Warranty 10 YEARS
- COLOR SILVER
- PRODUCT TYPE ELECTRIC STRIKE
- Brand FSH
- Unit Dimensions (mm) 175H x 100W x 20D
- Series FEL990 SERIES
- Power 12 to 24VDC
- Mounting RECESSED MOUNT
- Device Type MORTICE LOCK
- Elec/Mech ELECTRIC
- Backset/Lip 60MM BACKSET
- PTO/PTL FAIL SAFE / FAIL SECURE ADJUSTABLE ON SITE
- Fire Rating 4 HOUR FIRE RATING
- Key Override YES
FSHFEL990_fds_1
