FSH FEL990M-PTD FEL990 SERIES ELECTRIC MORTICE LOCK 60MM BACKSET STAINLESS STEEL MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR
FSHFEL990M-PTD
FEL990M-PTD
New product
FSH FEL990M-PTD ELECTRIC MORTICE LOCK MONITORED FAIL SAFE/FAIL SECURE 60MM BACKSET 12/24VDC WITH 300MM PTD KIT

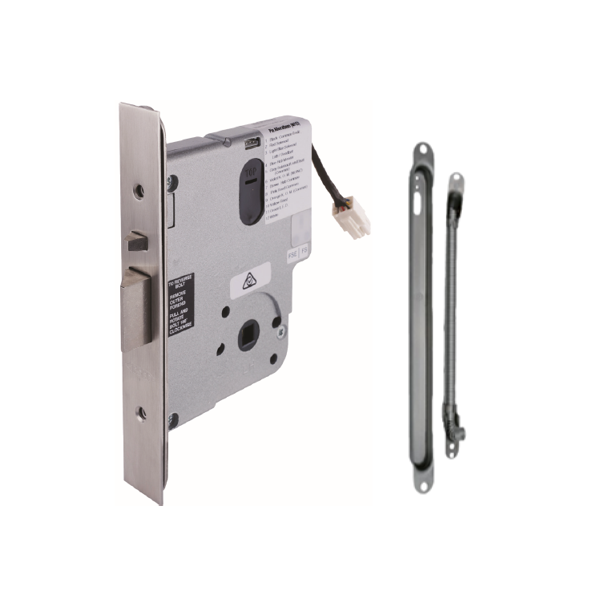

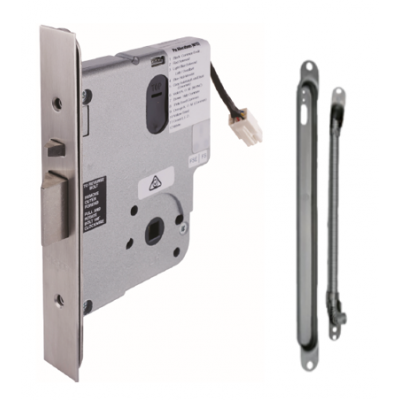

FEL990M-PTD FSH Monitored Electric Mortice Lock Kit - 60 mm Backset
The FSH FEL990M-PTD is a monitored electric mortice lock kit with a standard 60 mm backset, satin stainless steel finish and fire-rated 300 mm lead-cover Power Transfer Device. The concealed transfer device supplies power from the frame to swinging doors opening from 90° to 120°.
Monitoring covers door position, lock status, dual key override and request-to-exit operation, with LED indication. The lock supports multi-voltage DC operation, on-site fail-safe or fail-secure configuration and a fire rating of up to four hours in accordance with AS 1905.1:2015.
Key Features
- Field-selectable vestibule or combination locking configuration
- Left-hand or right-hand operation can be selected during installation
- Lock-status monitoring covers the locking bar deadlatching bolt and latchbolt
- Reverse-polarity protection safeguards the electrical connection
- Covered by a ten-year mechanical warranty and one-year electronic warranty
- Colour STAINLESS STEEL
- Warranty 60 Months
- COLOR SILVER
- PRODUCT TYPE ELECTRIC STRIKE
- Brand FSH
- Unit Dimensions (mm) 173H x 100W x 20D
- Series FEL990 SERIES
- Power 12 to 24VDC
- Mounting MORTISE MOUNT
- Device Type MORTICE LOCK
- Elec/Mech ELECTRIC
- Backset/Lip 60MM BACKSET
- Monitored MONITORED
- Lock Status Sensor (LSS) YES
- Door Status Sensor (DSS) YES
- PTO/PTL FAIL SAFE / FAIL SECURE ADJUSTABLE ON SITE
- Fire Rating 4 HOUR FIRE RATING
- LED Indicator YES
- Key Override YES
