> >>>PBB2S-13-7 DC UPS 13.8V @ 7A (100W) - CHASSIS MOUNT
PBB2S-13-7 DC UPS 13.8V @ 7A (100W) - CHASSIS MOUNT View larger

POWERBOX

PBB2S-13-7 DC UPS 13.8V @ 7A (100W) - CHASSIS MOUNT

PBXPBB2S-13-7

PBB2S-13-7

New product

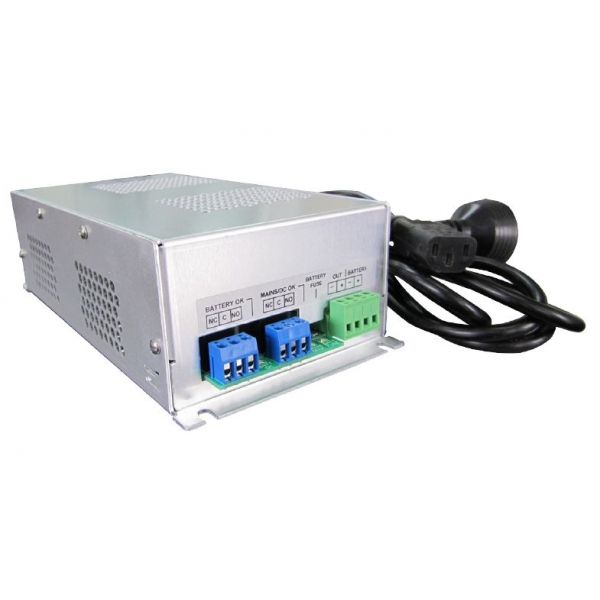

PBB2S-13-7 13.8VDC 7A DC UPS Battery Charger

The PBB2S-13-7 is a high-efficiency 13.8VDC 7A industrial-grade DC UPS battery charger designed for reliable power delivery and backup in demanding applications. Housed in a lightweight, corrosion-resistant aluminium enclosure, it features advanced protection circuitry including short circuit, overvoltage, overtemperature, and reverse polarity safeguards. The unit also includes separate current-limited battery charging output and self-resetting battery fuse, ensuring both system and battery protection during abnormal conditions.

Key Features

  • 13.8VDC 7A total output with 6A load and 1A battery charging current.
  • Universal AC input range (100–240VAC) with natural convection cooling.
  • Green LED indicators for Mains/DC OK and Battery OK, with form-C alarm contacts.
  • Industrial-grade reliability with self-resetting protection and compact 219x114x62mm case.
  • Complies with AS/NZS60950.1 and EMC AS/NZS CISPR22 Class B standards.
  • COLOR SILVER
  • PRODUCT TYPE POWER SUPPLY
