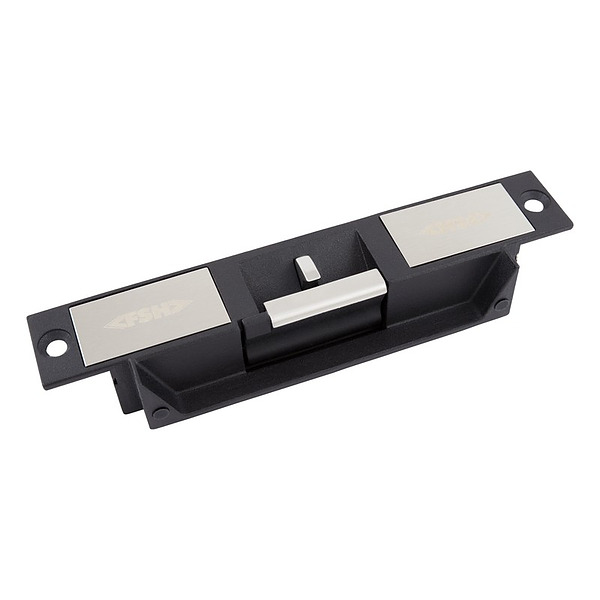

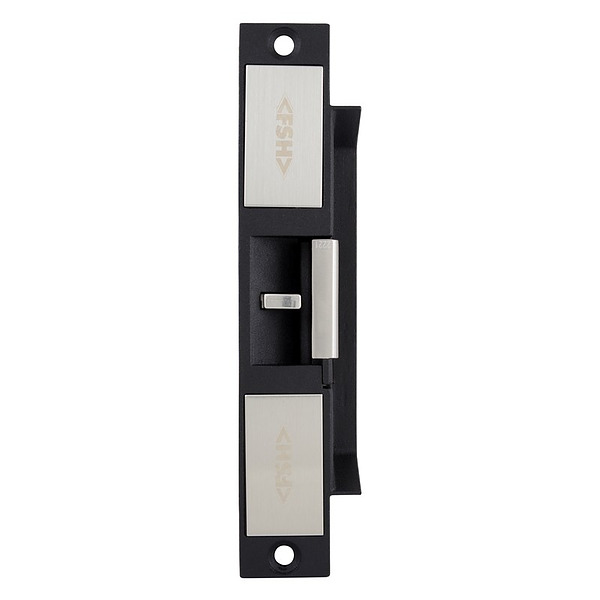

High Security Electric Strike - Monitored View larger

High Security Electric Strike - Monitored

FSHFES90M-P

New product

High Security Electric Strike - Monitored

More details

Sea Contracting Carnarvon 0427 043 562 www.seacontracting.com.au

The patented FES90M-P motorised high security electric strike is a revolutionary electric locking solution. The high pre-load /side-load tolerance, and minimal energy consumption in Sleep Mode, makes this an economic security solution.

The strike accepts voltages from 10 to 30VDC, is pre-drilled for extension lips and has a unique Power To Lock (PTL) / Power To Open (PTO) field selectable function. The strike consumes current less than 300mA @ 12VDC at full 35kg pre-load only during locking and unlocking action. In the locked or unlocked state (Sleep Mode), the electric strike consumes less than 15mA @ 12VDC.

The FES90M-P provides two forms of monitoring:

• Lock Status Sensor (LSS)

• Door Status Sensor (DSS) FES90M-P comes with a 10mm strike lip as standard.

Features

  • Releases with up to 35kg of pre-load / side-load
  • Motorised locking device
  • Durability tested to 1.5 million full pre-load cycles of 35kg
  • Multi voltage from 10 to 30VDC
  • Sleep Mode Current less than 15mA@12VDC
  • Fully monitored including Reed Switch for door position
  • Pre-drilled for extension lips
  • Up to 1300kg holding strength
  • Guaranteed shock/hammer resistant
  • Certifications 4 hour fire rated
  • Colour Black/Silver
  • Holding Strength Up to 1300kg
  • Voltage Multi Voltage 10-30VDC
  • Warranty 5 Years
